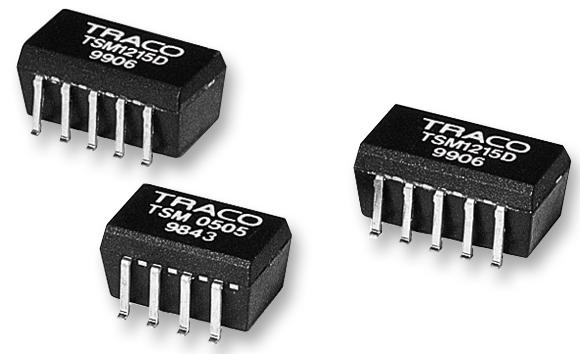

TRACO POWER - TSM 1212S - Isolated Surface Mount DC/DC Converter, ITE, 1:1, 1 W, 1 Output, 12 V, 80 mA
- No. of Outputs: 1 Output
- Output Power Max: 1W
- Output Voltage - Output 1: 12V
- Output Current - Output 1: 80mA
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Product Range: TSM Series
- Input Voltage DC Min: 10.8V
- Input Voltage DC Max: 13.2V
- DC / DC Converter Output Type: Fixed
- DC / DC Converter Type: Surface Mount DIP
- DC / DC Converter Mounting: Surface Mount Device
- Width: 8mm
- Height: 6.8mm
- Depth: 12.7mm
- SVHC: No SVHC (27-Jun-2018)
- Efficiency: 80%
- Efficiency Max: 80%
- External Depth: 12.7mm
- External Length / Height: 6.95mm
- External Width: 80mm
- Input Voltage: 12VDC
- Isolation Voltage: 1kV
- Line Regulation: 10%
- Load Regulation: 10%
- No. of Outputs: 1Outputs
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Output Ripple Voltage pk-pk: 120mV
- Power Rating: 1W
- Supply Voltage: 12V
