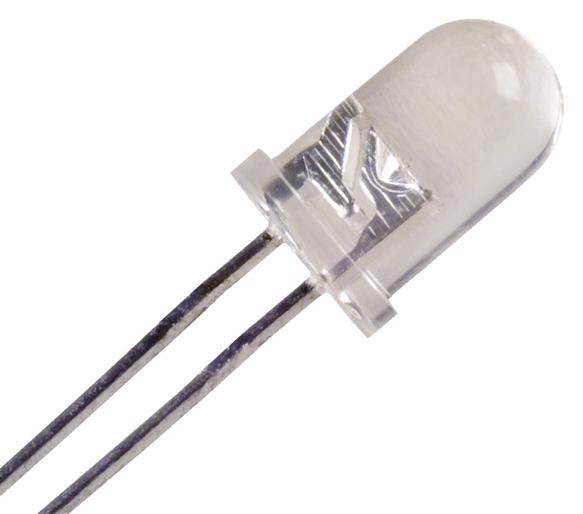

VISHAY - TSHG6200 - Infrared Emitter, High Speed, 850 nm, 10 °, T-1 3/4 (5mm), 20 mW/Sr, 20 ns, 13 ns
- Peak Wavelength: 850nm
- Angle of Half Intensity: 10°
- Diode Case Style: T-1 3/4 (5mm)
- Radiant Intensity (Ie): 20mW/Sr
- Rise Time: 20ns
- Fall Time tf: 13ns
- Forward Current If(AV): 100mA
- Forward Voltage VF Max: 1.5V
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Automotive Qualification Standard: -
- Product Range: -
- MSL: -
- SVHC: No SVHC (15-Jan-2019)
- No. of Pins: 2Pins
- Operating Temperature Range: -40°C to +85°C
- Viewing Angle: 10°
- Wavelength Typ: 850nm
