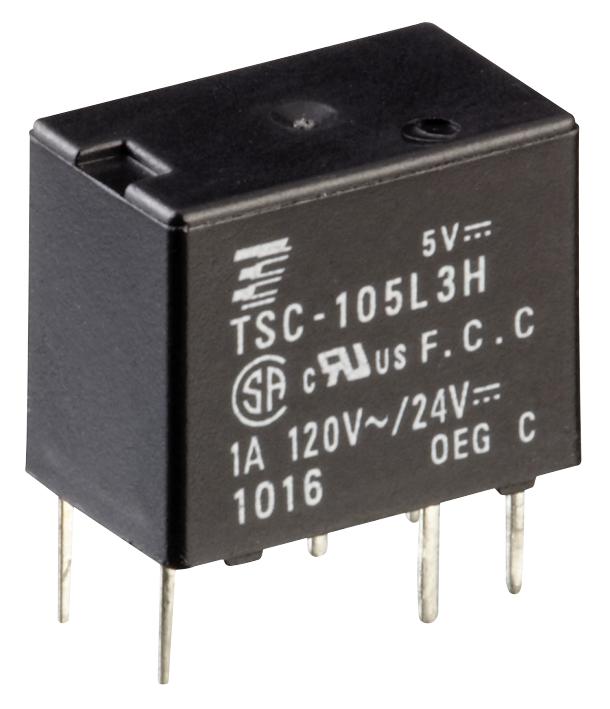

TSC-105L3H Relay, Signal, SPDT, 120VAC, 24Vdc, 1A OEG - Te Connectivity

OEG - TE CONNECTIVITYUGS :TSC-105L3H Code de commande:9659668

Prix:
Prix ​​promotionnel€6,99

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (163 unité)

Documents et téléchargements

description

OEG - TE CONNECTIVITY - 5-1415016-1 - Signal Relay, 5 VDC, SPDT, 1 A, TSC, Through Hole

  • Coil Voltage: 5VDC
  • Contact Configuration: SPDT
  • Contact Current: 1A
  • Product Range: TSC Series
  • Relay Mounting: Through Hole
  • Coil Type: -
  • Relay Terminals: Solder
  • Contact Voltage VAC: 120V
  • Contact Voltage VDC: 24V
  • Contact Material: Silver Nickel
  • Coil Resistance: 166ohm
  • Coil Current: 30mA
  • Coil Power Continuous: 150mW
  • Coil Voltage VDC Nom: 5V
  • Contact Current Max: 1A
  • Contact Resistance: 50mohm
  • Contact Voltage AC Nom: 120V
  • Contact Voltage DC Nom: 24V
  • External Depth: 12.3mm
  • External Height: 9.9mm
  • External Width: 7.4mm
  • Operating Temperature Max: 80°C
  • Operating Temperature Min: -40°C
  • Operating Time: 5ms
  • Relay Type: General Purpose
  • Release Time: 5ms
