description

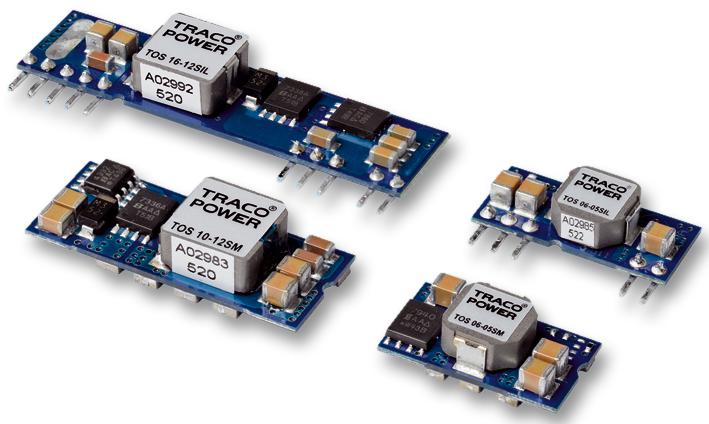

TRACO POWER - TOS 16-12SIL - Non Isolated POL DC/DC Converter, Low Profile, ITE, 80 W, 750 mV, 5 V, 16 A, Adjustable
- Output Power Max: 80W
- Output Voltage Min: 750mV
- Output Voltage Max: 5V
- Output Current Max: 16A
- DC / DC Converter Output Type: Adjustable
- DC / DC Converter Type: SIP
- Input Voltage DC Min: 8.3V
- Input Voltage DC Max: 14V
- Height: 8.28mm
- Depth: 50.8mm
- Width: 12.7mm
- Product Range: -
- SVHC: No SVHC (27-Jun-2018)
- DC / DC Converter Mounting: Through Hole
- Efficiency: 92%
- External Depth: 13.5mm
- External Length / Height: 8.28mm
- External Width: 33mm
- Input Voltage Max: 14VDC
- Input Voltage Min: 8.3VDC
- No. of Outputs: 1Outputs
- Output Current: 16A
- Output Ripple Voltage pk-pk: 75mV
- Power Rating: 80W
- Supply Voltage: 12V
- Weight: 6g
