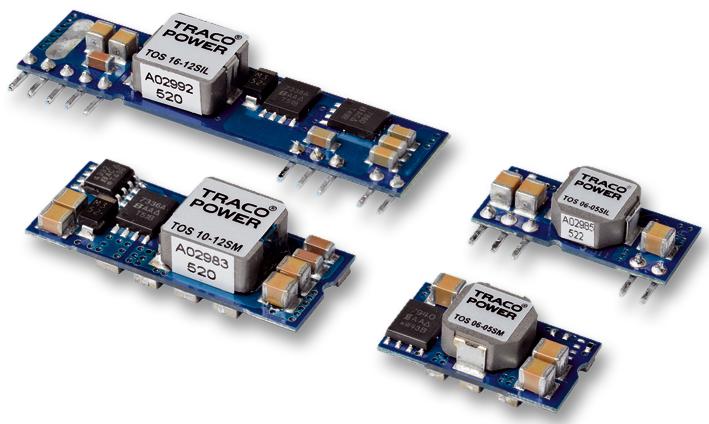

TRACO POWER - TOS 06-12SIL - Non Isolated POL DC/DC Converter, Low Profile, ITE, 30 W, 750 mV, 5 V, 6 A, Adjustable
- Output Power Max: 30W
- Output Voltage Min: 750mV
- Output Voltage Max: 5V
- Output Current Max: 6A
- DC / DC Converter Output Type: Adjustable
- DC / DC Converter Type: SIP
- Input Voltage DC Min: 8.3V
- Input Voltage DC Max: 14V
- Height: 6.65mm
- Depth: 22.9mm
- Width: 10.2mm
- Product Range: -
- SVHC: No SVHC (27-Jun-2018)
- DC / DC Converter Mounting: Through Hole
- Efficiency: 89%
- External Depth: 11.4mm
- External Length / Height: 6.65mm
- External Width: 20.3mm
- Input Voltage Max: 14VDC
- Input Voltage Min: 8.3VDC
- No. of Outputs: 1Outputs
- Output Current: 6A
- Output Ripple Voltage pk-pk: 75mV
- Power Rating: 30W
- Supply Voltage: 12V
- Weight: 2.8g
