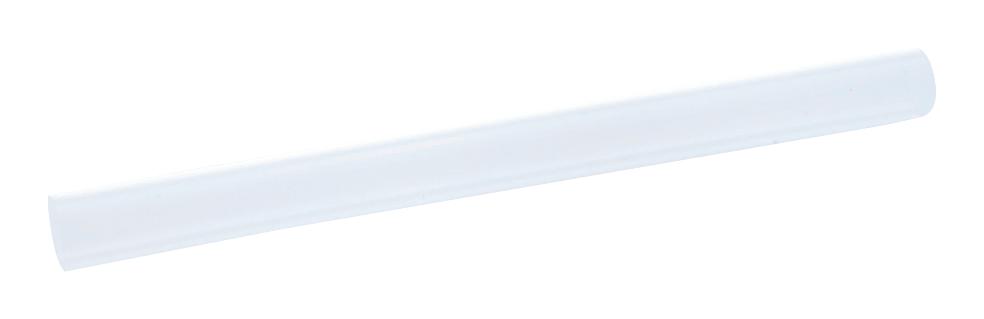

TE CONNECTIVITY - TMS-CCUV-SLEEVE-2-X-65MM - Heat Shrink Tubing, Oversleeve, Pack 250, 2:1, 0.188 ", 4.8 mm, Transparent, 2.55 ", 65 mm
- Shrink Ratio: 2
- I.D. Supplied - Imperial: 0.188"
- I.D. Supplied - Metric: 4.8mm
- Shrink Tubing / Boot Colour: Transparent
- Length - Imperial: 2.55"
- Length - Metric: 65mm
- I.D. Recovered Max - Imperial: 0.094"
- I.D. Recovered Max - Metric: 2.4mm
- Shrink Tubing / Boot Material: Fluoropolymer
- Product Range: -
- SVHC: No SVHC (27-Jun-2018)
- Accessory Type: Heat Shrink UV Resistant Oversleeve
- Body Material: Fluoropolymer
- Cable Diameter Max: 4.8mm
- Cable Diameter Min: 2.4mm
- Colour: Transparent
- External Length / Height: 65mm
- Fully Shrunk Diameter: 2.4mm
- Height: 65mm
- I.D. Max Recovered: 2.4mm
- I.D. Supplied: 4.8mm
- Internal Diameter: 4.8mm
- Material: Radiation Cross-Linked Fluoropolymer
- Operating Temperature Max: 150°C
- Operating Temperature Min: -55°C
- Pack Quantity: 250
- Shrink Temperature: 150°C
- Shrink Type: Heat
- Unshrunk Diameter: 4.8mm
