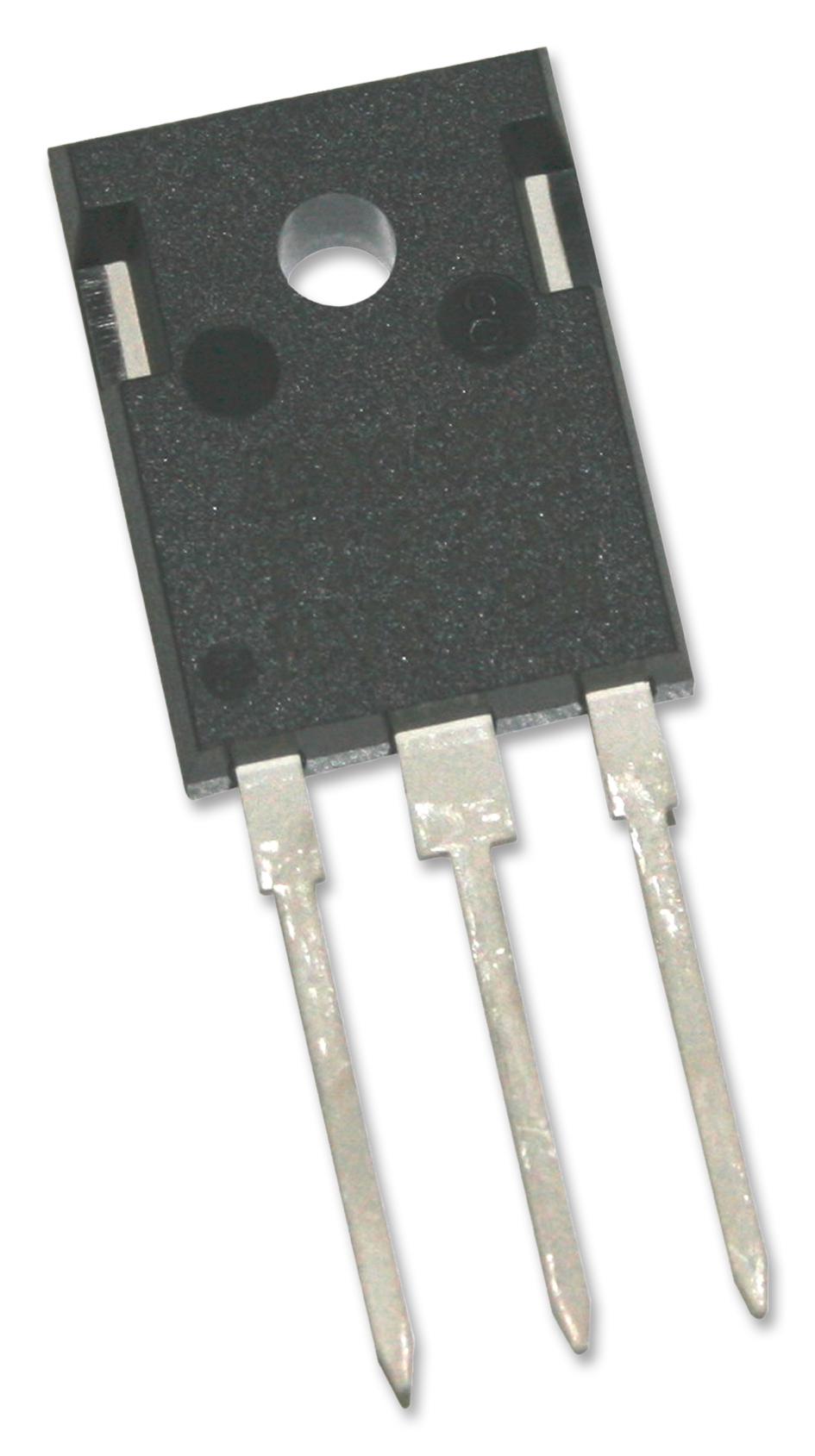

TIP35C Transistor, NPN, TO-247 multicomp Pro

MULTICOMP PROUGS :TIP35C Code de commande:9294350

Prix:
Prix ​​promotionnel€6,26

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (3697 unité)

Documents et téléchargements

description

MULTICOMP PRO - TIP35C - Bipolar (BJT) Single Transistor, General Purpose, NPN, 100 V, 25 A, 125 W, TO-247, Through Hole

  • Transistor Polarity: NPN
  • Collector Emitter Voltage V(br)ceo: 100V
  • Transition Frequency ft: 3MHz
  • Power Dissipation Pd: 125W
  • DC Collector Current: 25A
  • DC Current Gain hFE: 75hFE
  • Transistor Case Style: TO-247
  • No. of Pins: 3Pins
  • Operating Temperature Max: 150°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: -
  • SVHC: No SVHC (27-Jun-2018)
  • Collector Emitter Saturation Voltage Vce(on): 1.8V
  • Continuous Collector Current Ic Max: 25A
  • Current Ic Continuous a Max: 25A
  • Current Ic hFE: 15A
  • Full Power Rating Temperature: 25°C
  • Gain Bandwidth ft Min: 3MHz
  • Gain Bandwidth ft Typ: 3MHz
  • Hfe Min: 10
  • No. of Transistors: 1
  • Operating Temperature Min: -65°C
  • Operating Temperature Range: -65°C to +150°C
  • Power Dissipation Ptot Max: 125W
  • Voltage Vcbo: 100V
