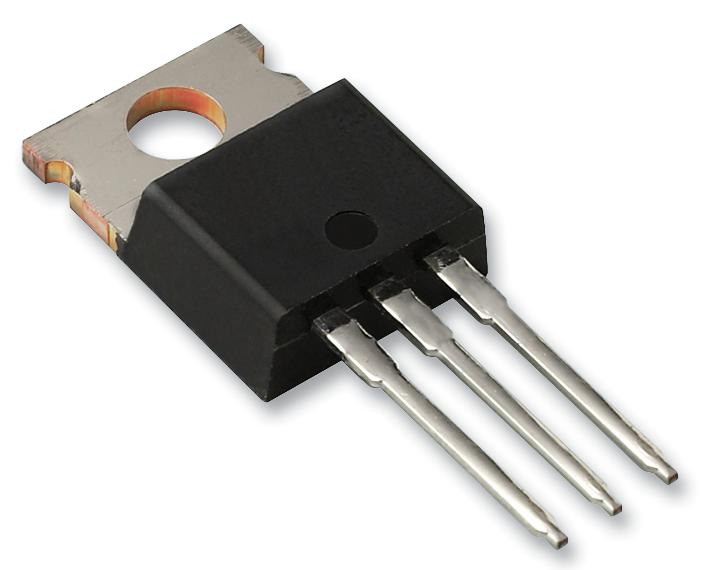

MULTICOMP PRO - TIP150 - Bipolar (BJT) Single Transistor, Darlington, NPN, 300 V, 7 A, 80 W, TO-220, Through Hole
- Transistor Polarity: NPN
- Collector Emitter Voltage V(br)ceo: 300V
- Transition Frequency ft: -
- Power Dissipation Pd: 80W
- DC Collector Current: 7A
- DC Current Gain hFE: 150hFE
- Transistor Case Style: TO-220
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (27-Jun-2018)
- Collector Emitter Saturation Voltage Vce(on): 1.5V
- Continuous Collector Current Ic Max: 7A
- Current Ib: 1.5A
- Current Ic @ Vce Sat: 5A
- Current Ic Continuous a Max: 5A
- Current Ic hFE: 7A
- Hfe Min: 15
- No. of Transistors: 1
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +150°C
- Pin Configuration: B(1), C(2+case), E(3)
- Power Dissipation Ptot Max: 80W
- Pulsed Current Icm: 10A
- Termination Type: Through Hole
- Transistor Type: Darlington
- Turn Off Time: 1.6µs
- Turn On Time: 180ns
- Voltage Vcbo: 300V
- Voltage Vces: 2V
