THB 3-0515 DC-DC Converter, Medical, 24V, 0.125A TRACO Power

TRACO POWERUGS :THB 3-0515 Code de commande:1441205

Prix:
Prix ​​promotionnel€54,80

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (11 unité)

Documents et téléchargements

description

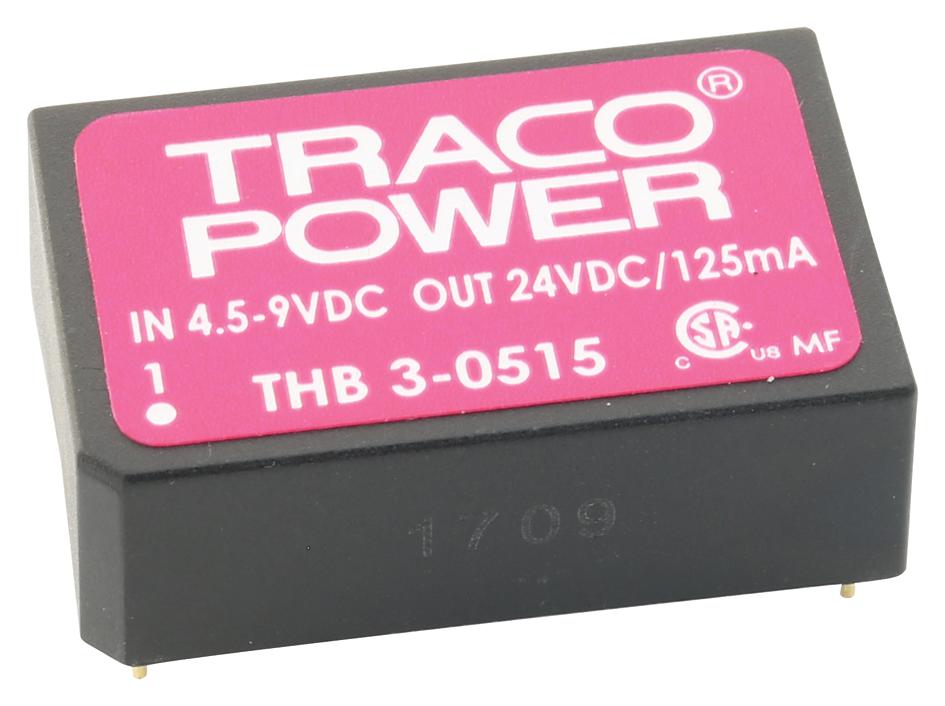

TRACO POWER - THB 3-0515 - Isolated Through Hole DC/DC Converter, Medical, 2:1, 3 W, 1 Output, 24 V, 125 mA

  • No. of Outputs: 1 Output
  • Output Power Max: 3W
  • Output Voltage - Output 1: 24V
  • Output Current - Output 1: 125mA
  • Output Voltage - Output 2: -
  • Output Current - Output 2: -
  • Output Voltage - Output 3: -
  • Output Current - Output 3: -
  • Product Range: THB 3 Series
  • Input Voltage DC Min: 4.5V
  • Input Voltage DC Max: 9V
  • DC / DC Converter Output Type: Fixed
  • DC / DC Converter Type: DIP
  • DC / DC Converter Mounting: Through Hole
  • Width: 20.3mm
  • Height: 10.7mm
  • Depth: 31.8mm
  • SVHC: No SVHC (27-Jun-2018)
  • Approval Bodies: CSA C22.2 No. 601, EN 60601, IEC 60601, UL 60601
  • Approvals & Standards: CSA 22.2 No. 60601, IEC 60601, UL 60601
  • Efficiency: 76%
  • Isolation Voltage: 4kV
  • No. of Outputs: 1Outputs
  • Power Rating: 3W
  • Supply Voltage: 5V
