TEP 150-4818WI Converter, DC DC, 150W, 48V, 3.2A TRACO Power

TRACO POWERUGS :TEP 150-4818WI Code de commande:1772249

Prix:
Prix ​​promotionnel€283,76

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
Rupture de stock

Documents et téléchargements

description

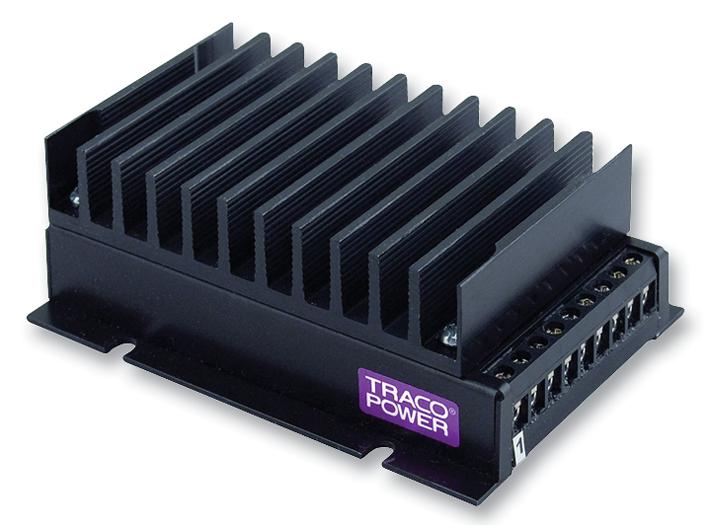

TRACO POWER - TEP 150-4818WI - Isolated Chassis Mount DC/DC Converter, Railway, 4:1, 150 W, 1 Output, 48 V, 3.2 A

  • No. of Outputs: 1 Output
  • Output Power Max: 150W
  • Output Voltage - Output 1: 48V
  • Output Current - Output 1: 3.2A
  • Output Voltage - Output 2: -
  • Output Current - Output 2: -
  • Output Voltage - Output 3: -
  • Output Current - Output 3: -
  • Product Range: TEP 150WI Series
  • Input Voltage DC Min: 18V
  • Input Voltage DC Max: 75V
  • DC / DC Converter Mounting: Chassis
  • DC / DC Converter Output Type: Fixed
  • SVHC: No SVHC (27-Jun-2018)
  • Approvals & Standards: IEC, UL
  • DC / DC Converter Type: Module
  • Efficiency: 87%
  • External Depth: 65mm
  • External Length / Height: 34mm
  • External Width: 98mm
  • Input Voltage Max: 75V
  • Input Voltage Min: 18V
  • Isolation Voltage: 2.25kV
  • No. of Outputs: 1Outputs
  • Output Current: 3.2A
  • Output Current Max: 3.2A
  • Output Voltage: 48V
  • Output Voltage Nom.: 48V
  • Power Rating: 150W
  • Power Supply Output Type: Fixed
