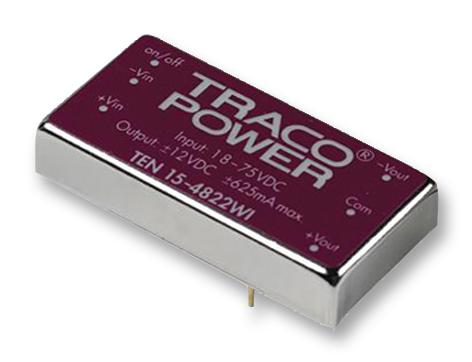

TRACO POWER - TEN 15-4822WI - Isolated Through Hole DC/DC Converter, ITE, 4:1, 15 W, 2 Output, 12 V, 625 mA
- No. of Outputs: 2 Output
- Output Power Max: 15W
- Output Voltage - Output 1: 12V
- Output Current - Output 1: 625mA
- Output Voltage - Output 2: -12V
- Output Current - Output 2: 625mA
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Product Range: -
- Input Voltage DC Min: 18V
- Input Voltage DC Max: 75V
- DC / DC Converter Output Type: Fixed
- DC / DC Converter Type: DIP
- DC / DC Converter Mounting: Through Hole
- Width: 25.4mm
- Height: 10.2mm
- Depth: 50.8mm
- SVHC: No SVHC (27-Jun-2018)
- Approval Bodies: EN 60950, IEC 60950, UL/cUL 60950
- Approvals & Standards: CSA, IEC, UL
- Efficiency: 85%
- Isolation Voltage: 1.5kV
- No. of Outputs: 2Outputs
- Output Current - Max: 625mA
- Output Voltage +: 12VDC
- Output Voltage -: 12VDC
- Power Rating: 15W
- Supply Voltage: 48V
