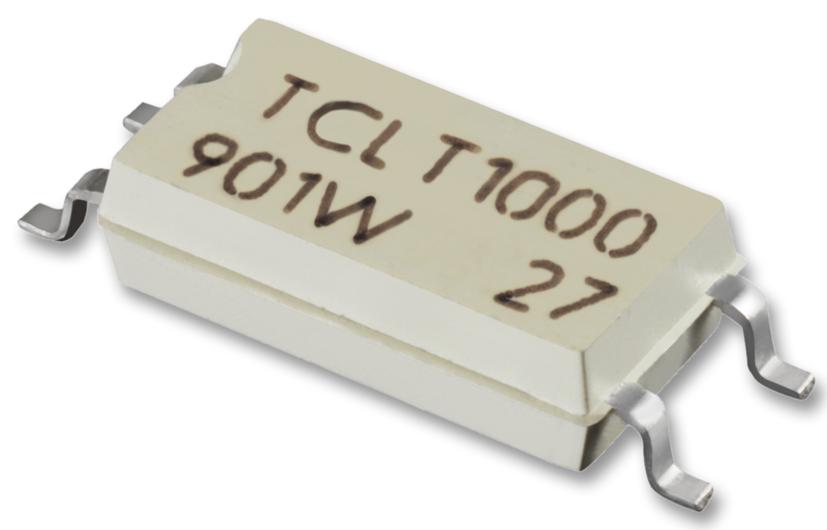

VISHAY - TCLT1007 - Optocoupler, Transistor Output, 1 Channel, SOP, 4 Pins, 60 mA, 5 kV, 80 %
- No. of Channels: 1 Channel
- Optocoupler Case Style: SOP
- No. of Pins: 4Pins
- Forward Current If Max: 60mA
- Isolation Voltage: 5kV
- CTR Min: 80%
- Collector Emitter Voltage V(br)ceo: 70V
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Approval Bodies: BSI, DIN, FIMKO
- Continuous Collector Current Ic Max: 50mA
- Current Ic Continuous a Max: 50mA
- Current Transfer Ratio Max: 160%
- Current Transfer Ratio Min: 80%
- External Depth: 38mm
- External Length / Height: 2mm
- External Width: 7.5mm
- Fall Time tf: 5µs
- Forward Voltage VF Max: 1.6V
- Input Current: 50mA
- Lead Spacing: 10.2mm
- No. of Channels: 1Channels
- Operating Temperature Max: 100°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +100°C
- Optocoupler Output Type: Phototransistor
- Output Voltage: 70V
- Power Dissipation Pd: 250mW
- Rise Time: 6µs
- Row Pitch: 2.54mm
