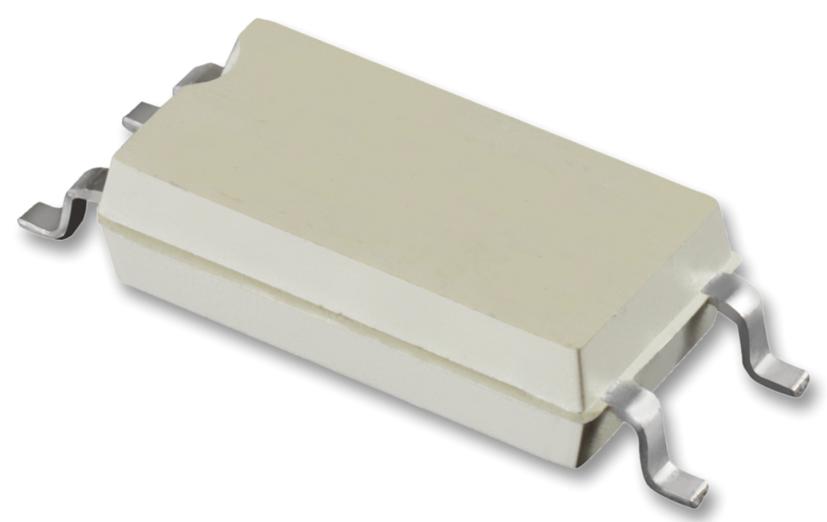

TCLD1000 Optocoupler, SMD, Darlington O/P Vishay

VISHAYUGS :TCLD1000 Code de commande:8310670

Prix:
Prix ​​promotionnel€1,06

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (9007 unité)

Documents et téléchargements

description

VISHAY - TCLD1000 - Optocoupler, Darlington Output, 1 Channel, SOP, 4 Pins, 60 mA, 5 kV, 600 %

  • No. of Channels: 1 Channel
  • Optocoupler Case Style: SOP
  • No. of Pins: 4Pins
  • Forward Current If Max: 60mA
  • Isolation Voltage: 5kV
  • CTR Min: 600%
  • Collector Emitter Voltage V(br)ceo: 35V
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2019)
  • Approval Bodies: BSI, CSA, DIN, UL
  • Current Transfer Ratio Min: 600%
  • External Depth: 38mm
  • External Length / Height: 2mm
  • External Width: 7.5mm
  • Fall Time tf: 250µs
  • Forward Voltage VF Max: 1.6V
  • Input Current: 20mA
  • Lead Spacing: 10.2mm
  • No. of Channels: 1Channels
  • Operating Temperature Max: 100°C
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +100°C
  • Optocoupler Output Type: Photodarlington
  • Output Current: 80mA
  • Output Voltage: 35V
  • Peak Forward Current: 60mA
  • Power Dissipation Pd: 250mW
  • Rise Time: 300µs
  • Row Pitch: 2.54mm
