description

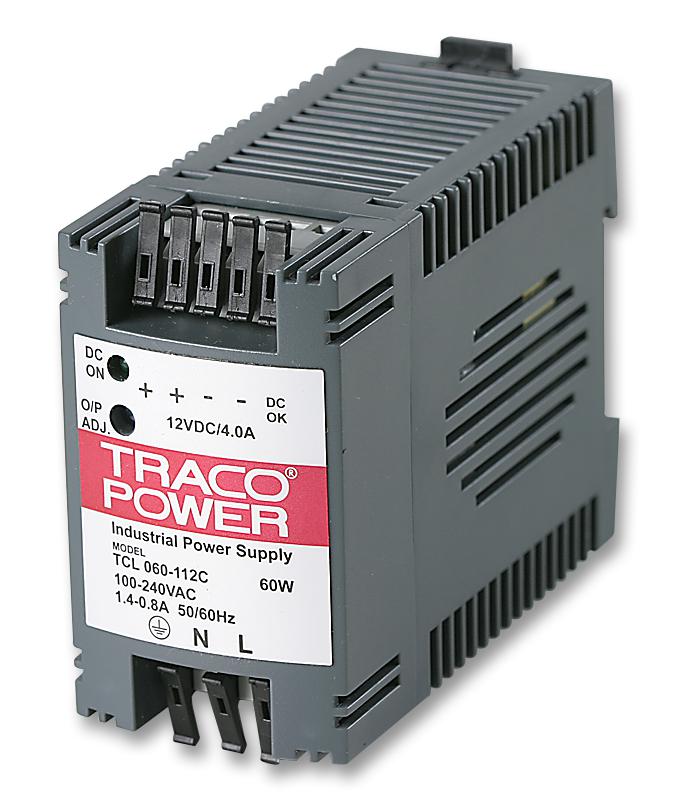

TRACO POWER - TCL 060-112C - AC/DC DIN Rail Power Supply (PSU), ITE, 1 Output, 60 W, 12 VDC, 4 A
- No. of Outputs: 1 Output
- Output Power Max: 60W
- Output Voltage - Output 1: 12VDC
- Output Current - Output 1: 4A
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Output Voltage - Output 4: -
- Current, Output 4: -
- Input Voltage VAC: 85V AC to 264V AC
- Power Supply Output Type: Adjustable, Fixed
- Product Range: TCL Series
- SVHC: No SVHC (27-Jun-2018)
- Applications: Industrial
- Approval Bodies: CB, cUL, EN, IEC, UL
- External Depth: 100mm
- External Length / Height: 75mm
- External Width: 45mm
- Height: 75mm
- Input Frequency: 63Hz
- Input Voltage AC Max: 264VAC
- Input Voltage AC Min: 85VAC
- Length: 100mm
- No. of Outputs: 1Outputs
- Output Current: 4A
- Output Power: 48W
- Output Voltage: 12V
- Power Rating: 48W
- Power Supply Type: Switch Mode
- Supply Frequency Max: 60Hz
- Supply Frequency Min: 50Hz
- Supply Voltage: 264V
- Supply Voltage Max: 264V
- Supply Voltage Min: 85V
- Supply Voltage Typ: 110V AC, 230V AC
- Width: 45mm
