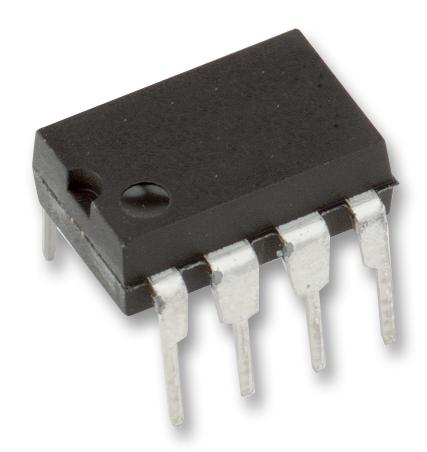

MICROCHIP - TC7662ACPA - DC/DC Adjustable Charge Pump Voltage Converter, 3V to 18V in, -18V to -3V/40 mA out, DIP-8
- Output Type: Adjustable
- Input Voltage Min: 3V
- Input Voltage Max: 18V
- DC / DC Converter IC Case: DIP
- No. of Pins: 8Pins
- Output Current: 40mA
- Fixed Output Voltage Nom.: -
- Adjustable Output Voltage Min: -18V
- Adjustable Output Voltage Max: -3V
- Topology: Inverting
- Operating Temperature Max: 70°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (27-Jun-2018)
- RoHS Phthalates Compliant: Yes
- A/D / D/A Features: CMOS
- Base Number: 7662
- Device Marking: TC7662ACPA
- Frequency: 12kHz
- IC Generic Number: 7662
- IC Temperature Range: Commercial
- Logic Function Number: 7662
- No. of Outputs: 1Outputs
- Operating Temperature Min: 0°C
- Operating Temperature Range: 0°C to +70°C
- Output Voltage: -18V
- Output Voltage Max: -3V
- Output Voltage Min: -18V
- Power Supply IC Type: DC / DC Converter
- Primary Input Voltage: 15V
- Supply Voltage Max: 18V
- Supply Voltage Min: 3V
- Termination Type: Through Hole
- Voltage Regulator Type: Charge Pump
