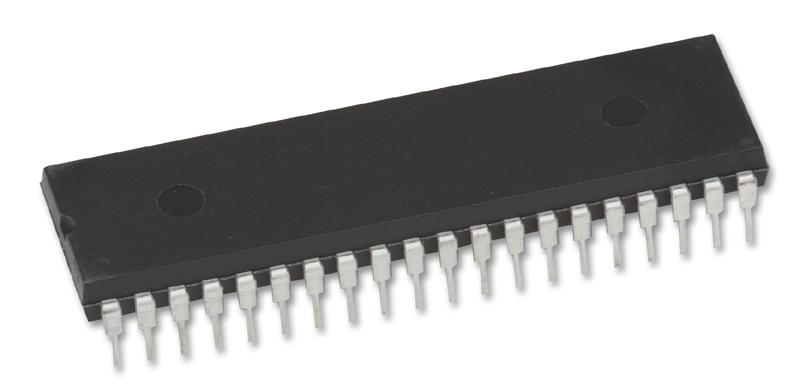

MICROCHIP - TC7109CPL - Analogue to Digital Converter, 12 bit, 10 SPS, Differential, Parallel, Serial, Single, 4.5 V
- Resolution (Bits): 12bit
- Sampling Rate: 10SPS
- Input Channel Type: Differential
- Data Interface: Parallel, Serial
- Supply Voltage Type: Single
- Supply Voltage Min: 4.5V
- Supply Voltage Max: 5.5V
- ADC / DAC Case Style: DIP
- No. of Pins: 40Pins
- Operating Temperature Min: 0°C
- Operating Temperature Max: 70°C
- Product Range: Single 12-Bit Integrating ADCs
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: Yes
- MSL: -
- SVHC: No SVHC (27-Jun-2018)
- A/D / D/A Features: CMOS
- Base Number: 7109
- IC Case Style: DIP
- IC Generic Number: 7109
- IC Temperature Range: Commercial
- Linearity Error ADC / DAC +: 1LSB
- Linearity Error ADC / DAC -: 1LSB
- Logic Function Number: 7109
- No. of Bits: 12bit
- No. of Channels: 2Channels
- Operating Temperature Range: 0°C to +70°C
- Supply Current: 700µA
- Supply Voltage Range: 4.5V to 5.5V
- Termination Type: Through Hole
