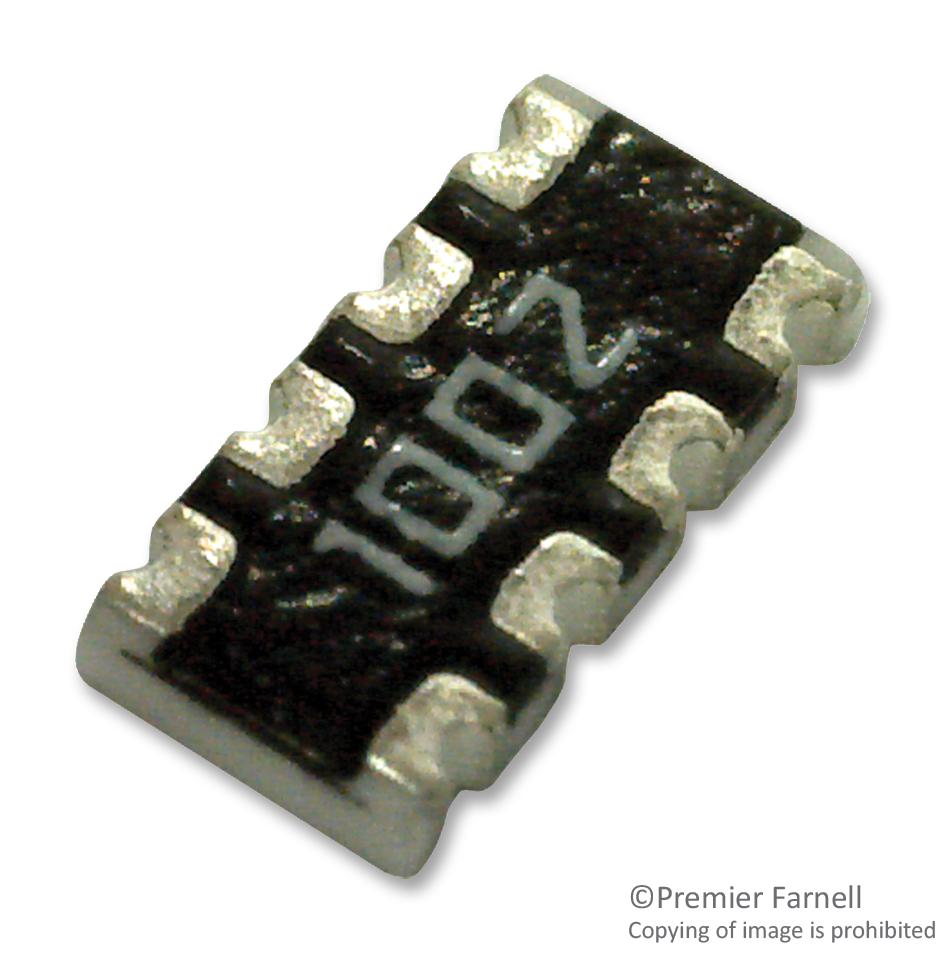

YAGEO - TC164-FR-0768KL - Fixed Network Resistor, 68 kohm, Isolated, 4 Resistors, 1206 [3216 Metric], Concave, ± 1%
- Resistance: 68kohm
- Product Range: TC164 Series
- No. of Elements: 4Elements
- Network Circuit Type: Isolated
- Resistor Case Style: 1206 [3216 Metric]
- No. of Pins: 8Pins
- Voltage Rating: 50V
- Power Rating per Element: 62.5mW
- Resistance Tolerance: ± 1%
- Temperature Coefficient: ± 200ppm/°C
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2019)
- Climatic Category: 55/125/56
- External Depth: 0.6mm
- External Length / Height: 3.2mm
- External Width: 1.6mm
- Full Power Rating Temperature: 70°C
- Operating Temperature Max: 155°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +155°C
- Power Rating: 63mW
- Reel Quantity: 5000
- Resistance R1: 68kohm
- Resistor Element Material: Thick Film
- Resistor Mounting: Surface Mount Device
- Temperature Coeff. +: 100ppm/°C
- Temperature Coeff. -: 100ppm/°C
- Tolerance +: 1%
- Tolerance -: 1%
- Voltage Rating V DC: 50V
- Voltage Rating VAC: 50V
