TC164-Fr-071K5L Resistor Array, ARC242 1206 1K5 YAGEO

YAGEOUGS :TC164-FR-071K5L Code de commande:9234810

Prix:
Prix ​​promotionnel€0,32

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (14030 unité)

Documents et téléchargements

description

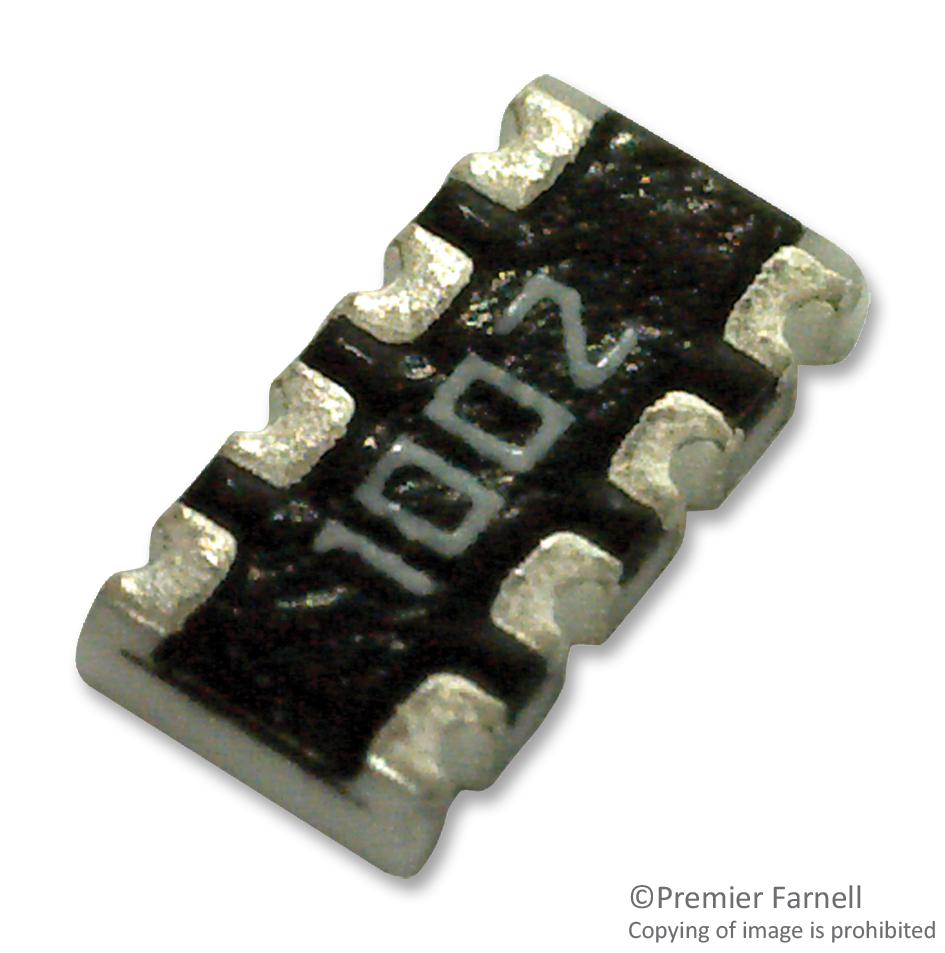

YAGEO - TC164-FR-071K5L - Fixed Network Resistor, 1.5 kohm, Isolated, 4 Resistors, 1206 [3216 Metric], Concave, ± 1%

  • Resistance: 1.5kohm
  • Product Range: TC164 Series
  • No. of Elements: 4Elements
  • Network Circuit Type: Isolated
  • Resistor Case Style: 1206 [3216 Metric]
  • No. of Pins: 8Pins
  • Voltage Rating: 50V
  • Power Rating per Element: 62.5mW
  • Resistance Tolerance: ± 1%
  • Temperature Coefficient: ± 200ppm/°C
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (15-Jan-2019)
  • Climatic Category: 55/125/56
  • External Depth: 0.06mm
  • External Length / Height: 3.2mm
  • External Width: 1.6mm
  • Full Power Rating Temperature: 70°C
  • Operating Temperature Max: 155°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +155°C
  • Power Rating: 63mW
  • Reel Quantity: 5000
  • Resistance R1: 1.5kohm
  • Resistor Element Material: Thick Film
  • Resistor Mounting: Surface Mount Device
  • Temperature Coeff. +: 100ppm/°C
  • Temperature Coeff. -: 100ppm/°C
  • Tolerance +: 1%
  • Tolerance -: 1%
  • Voltage Rating V DC: 50V
  • Voltage Rating VAC: 50V
