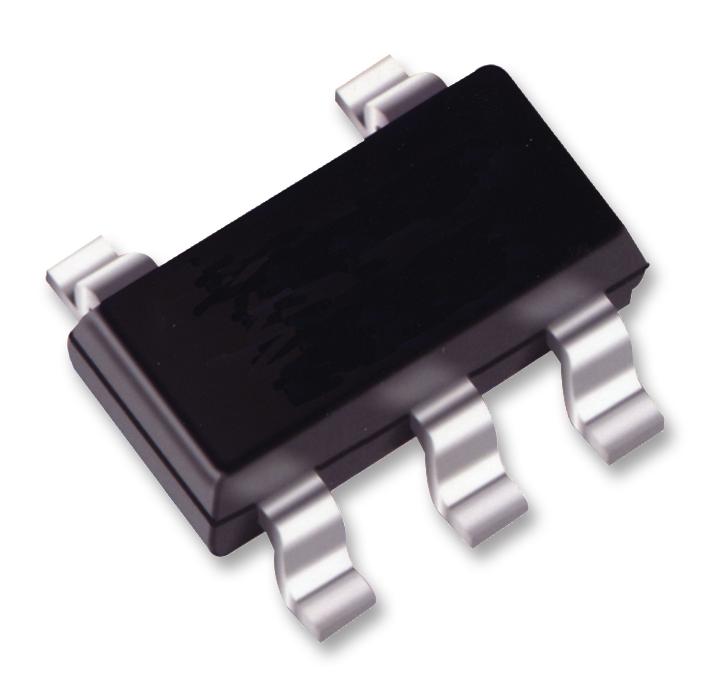

MICROCHIP - TC1185-3.3VCT713 - Fixed LDO Voltage Regulator, 2.7V to 6V, 270mV Dropout, 3.3Vout, 150mAout, SOT-23-5
- Output Type: Fixed
- Input Voltage Min: 2.7V
- Input Voltage Max: 6V
- Fixed Output Voltage Nom.: 3.3V
- Adjustable Output Voltage Min: -
- Adjustable Output Voltage Max: -
- Output Current: 150mA
- Dropout Voltage Vdo: 270mV
- LDO Regulator Case Style: SOT-23
- No. of Pins: 5Pins
- Operating Temperature Min: -40°C
- Operating Temperature Max: 125°C
- Product Range: 3.3V 150mA LDO Voltage Regulators
- Automotive Qualification Standard: AEC-Q100
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Accuracy %: 0.5%
- Base Number: 1185
- IC Generic Number: 1185
- IC Package (Case style): 5/SOT-23a
- Lead Spacing: 0.95mm
- No. of Outputs: 1Outputs
- Operating Temperature Range: -40°C to +125°C
- Operating Voltage Tolerance +: 0.5%
- Output Current Max: 0.15A
- Output Voltage Nom.: 3.3V
- Primary Input Voltage: 6V
- Row Pitch: 3.1mm
- Supply Voltage Min: 2.7V
- Voltage Regulator Type: Positive Fixed LDO
