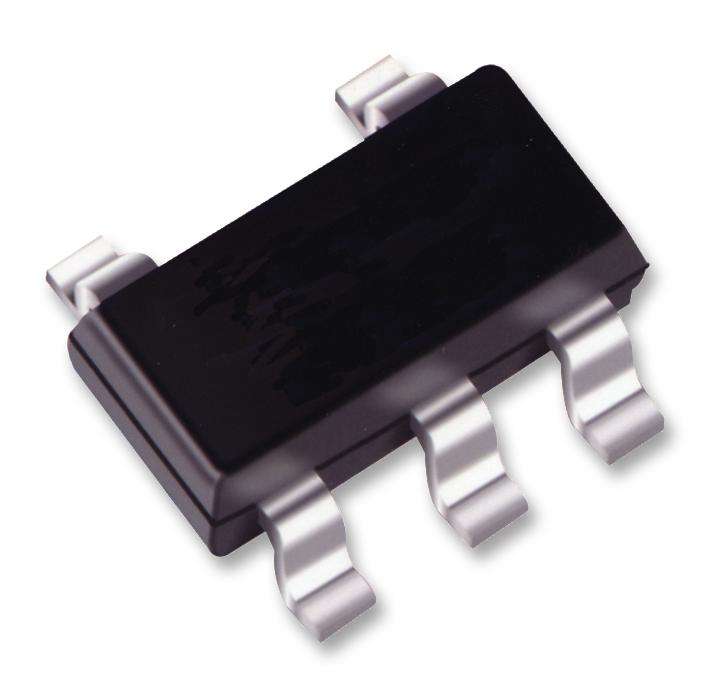

MICROCHIP - TC1015-2.8VCT713 - Fixed LDO Voltage Regulator, 2.7V to 6V, 180mV Dropout, 2.8Vout, 100mAout, SOT-23-5
- Output Type: Fixed
- Input Voltage Min: 2.7V
- Input Voltage Max: 6V
- Fixed Output Voltage Nom.: 2.8V
- Adjustable Output Voltage Min: -
- Adjustable Output Voltage Max: -
- Output Current: 100mA
- Dropout Voltage Vdo: 180mV
- LDO Regulator Case Style: SOT-23
- No. of Pins: 5Pins
- Operating Temperature Min: -40°C
- Operating Temperature Max: 125°C
- Product Range: 2.8V 100mA LDO Voltage Regulators
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: Yes
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Accuracy %: 0.5%
- Base Number: 1015
- IC Generic Number: 1015
- IC Package (Case style): SOT-23A
- Lead Spacing: 0.95mm
- No. of Outputs: 1Outputs
- Operating Temperature Range: -40°C to +125°C
- Operating Voltage Tolerance +: 0.5%
- Output Current Max: 0.1A
- Output Voltage Nom.: 2.8V
- Primary Input Voltage: 6V
- Row Pitch: 3.1mm
- Supply Voltage Min: 2.7V
- Termination Type: Surface Mount Device
- Voltage Regulator Type: Positive Fixed LDO
