T9AS5D12-12 Relay, SPDT, 240Vac, 28VDC, 30A Potter&BRUMFIELD - Te Connectivity

POTTER&BRUMFIELD - TE CONNECTIVITYUGS :T9AS5D12-12 Code de commande:1652610

Prix:
Prix ​​promotionnel€8,03

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (982 unité)

Documents et téléchargements

description

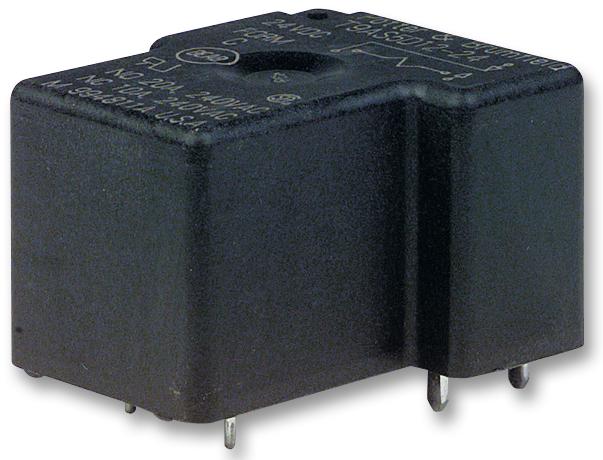

POTTER&BRUMFIELD - TE CONNECTIVITY - T9AS5D12-12 - General Purpose Relay, T9A Series, Power, Non Latching, SPDT, 12 VDC, 30 A

  • Contact Configuration: SPDT
  • Coil Voltage: 12VDC
  • Contact Current: 30A
  • Product Range: T9A Series
  • Relay Mounting: Through Hole
  • Coil Type: Non Latching
  • Contact Voltage VAC: 240VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: 28VDC
  • Contact Material: Silver Cadmium Oxide
  • Coil Resistance: 144ohm
  • SVHC: No SVHC (27-Jun-2018)
  • Approvals & Standards: CSA, UL
  • Coil Current: 83mA
  • Coil Voltage VDC Nom: 12V
  • Contact Current AC Max: 20A
  • Contact Current Max: 20A
  • Contact Voltage AC Max: 240V
  • Contact Voltage AC Nom: 240V
  • Contact Voltage DC Nom: 28V
  • External Depth: 27.9mm
  • External Height: 32.5mm
  • External Length / Height: 32.5mm
  • External Width: 27.4mm
  • Nom Operating Power: 1W
  • Relay Type: Power
