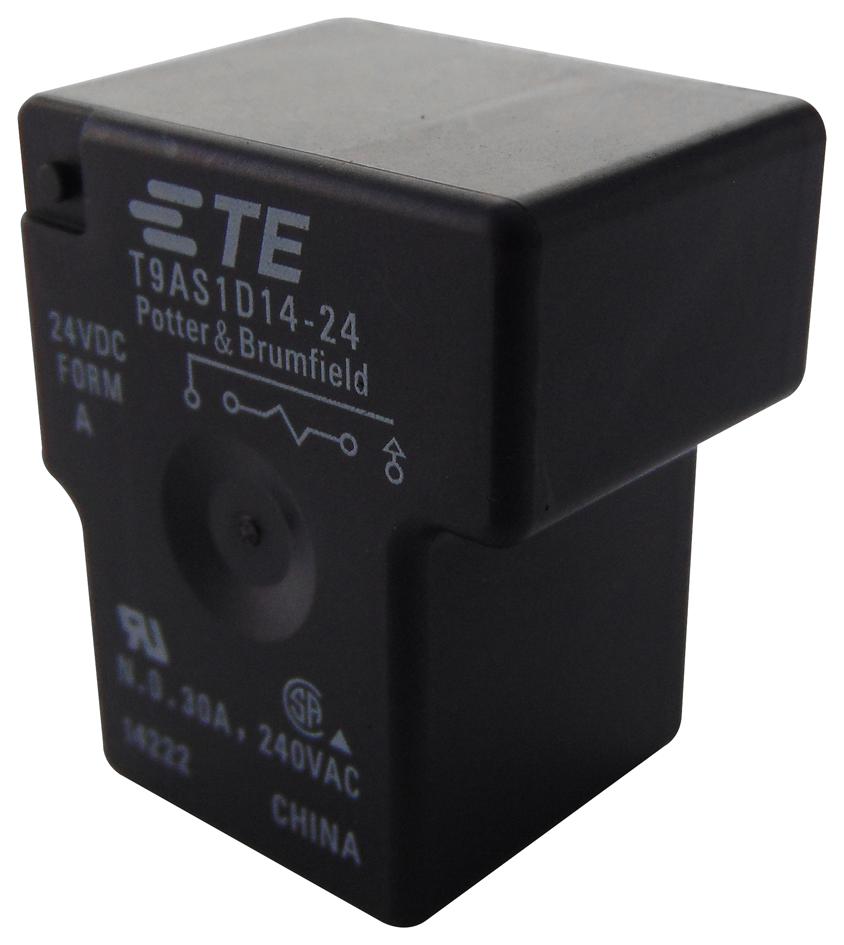

TE CONNECTIVITY - 6-1423091-3 - General Purpose Relay, T9A Series, Power, Non Latching, SPST, 24 VDC, 30 A
- Contact Configuration: SPST
- Coil Voltage: 24VDC
- Contact Current: 30A
- Product Range: T9A Series
- Relay Mounting: Through Hole
- Coil Type: Non Latching
- Contact Voltage VAC: 240VAC
- Relay Terminals: Solder
- Contact Voltage VDC: -
- Contact Material: Silver Tin Indium Oxide
- Coil Resistance: 576ohm
- SVHC: No SVHC (27-Jun-2018)
- Approval Bodies: CSA
- Approval Category: UL Recognised
- Approvals & Standards: CSA, UL
- Coil Current: 42mA
- Coil Voltage VDC Nom: 24V
- Contact Current AC Max: 30A
- Contact Current Max: 30A
- Contact Current Min: 1A
- Contact Resistance: 75mohm
- Contact Voltage AC Max: 240V
- Contact Voltage AC Nom: 240V
- DC Coil Power: 1W
- Dielectric Voltage Coil to Contact: 2500V
- Dielectric Voltage Contact to Contact: 1500V
- External Depth: 32.51mm
- External Height: 20.4mm
- External Length / Height: 20.4mm
- External Width: 27.43mm
- Insulation Resistance: 1000Mohm
- Insulation Resistance Voltage: 500VDC
- No. of Mechanical Operations: 10000000
- Nom Operating Power: 1W
- Operating Temperature Max: 85°C
