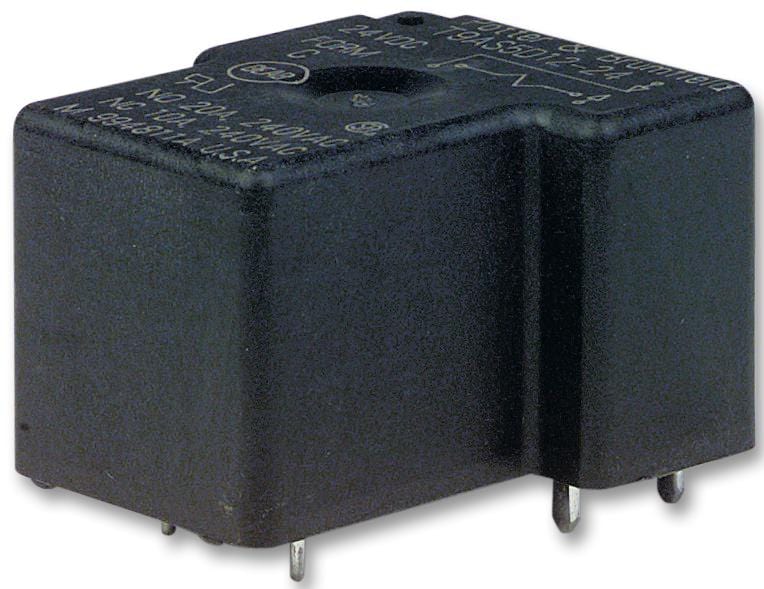

T9AS1D12-48 Relay, SPST-NO, 240Vac, 28VDC, 30A Potter&BRUMFIELD - Te Connectivity

POTTER&BRUMFIELD - TE CONNECTIVITYUGS :1-1393210-9 Code de commande:1608382

Prix:
Prix ​​promotionnel€7,37

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (361 unité)

Documents et téléchargements

description

POTTER&BRUMFIELD - TE CONNECTIVITY - 1-1393210-9 - General Purpose Relay, T9A Series, Power, Non Latching, SPST-NO, 48 VDC, 30 A

  • Contact Configuration: SPST-NO
  • Coil Voltage: 48VDC
  • Contact Current: 30A
  • Product Range: T9A Series
  • Relay Mounting: Through Hole
  • Coil Type: Non Latching
  • Contact Voltage VAC: 240VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: 28VDC
  • Contact Material: Silver Cadmium Oxide
  • Coil Resistance: 2.304kohm
  • SVHC: Cadmium oxide (27-Jun-2018)
  • Approvals & Standards: CSA, UL
  • Coil Current: 21mA
  • Coil Voltage VDC Nom: 48V
  • Contact Current AC Max: 30A
  • Contact Current Max: 30A
  • Contact Voltage AC Max: 240V
  • Contact Voltage AC Nom: 240V
  • External Depth: 27.4mm
  • External Height: 27.9mm
  • External Length / Height: 27.9mm
  • External Width: 32.5mm
  • Nom Operating Power: 1W
  • Relay Type: Power - General Purpose
