T92P11D22-24 Relay, DPDT, 277VAC, 28VDC, 30A Potter&BRUMFIELD - Te Connectivity

POTTER&BRUMFIELD - TE CONNECTIVITYUGS :5-1393211-4 Code de commande:270350

Prix:
Prix ​​promotionnel€27,86

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (345 unité)

Documents et téléchargements

description

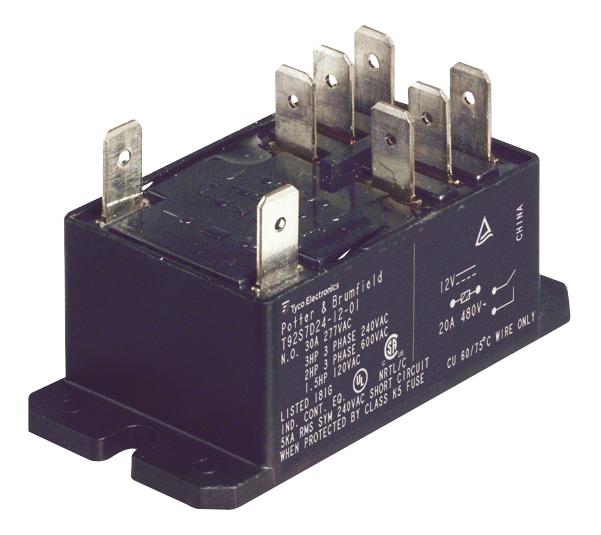

POTTER&BRUMFIELD - TE CONNECTIVITY - 5-1393211-4 - Power Relay, DPDT, 24 VDC, 30 A, T92, Panel Mount, Non Latching

  • Contact Configuration: DPDT
  • Coil Voltage: 24VDC
  • Contact Current: 30A
  • Product Range: T92 Series
  • Relay Mounting: Panel
  • Coil Type: Non Latching
  • Contact Voltage VAC: 277VAC
  • Relay Terminals: Quick Connect
  • Contact Voltage VDC: 28VDC
  • Contact Material: Silver Cadmium Oxide
  • Coil Resistance: 350ohm
  • SVHC: Cadmium oxide (27-Jun-2018)
  • Approvals & Standards: CSA, UL, VDE
  • Coil Operating Lower Percent Limit: 80%
  • Coil Operating Upper Percent Limit: 110%
  • Coil Voltage VDC Nom: 24V
  • Contact Current AC Max: 30A
  • Contact Current DC Max: 20A
  • Contact Current Max: 40A
  • Contact Voltage AC Max: 240V
  • Contact Voltage AC Nom: 600V
  • Contact Voltage DC Max: 28V
  • Contact Voltage DC Nom: 28V
  • Dielectric Strength VDC: 4000V
  • External Depth: 26mm
  • External Height: 69mm
  • External Length / Height: 69mm
  • External Width: 34mm
  • Flammability Rating: UL94V-0
  • Nom Operating Power: 1.7W
  • Operating Temperature Max: 65°C
  • Operating Temperature Min: -40°C
  • Operating Time: 15ms
  • Relay Type: Power
  • Release Time: 10ms
