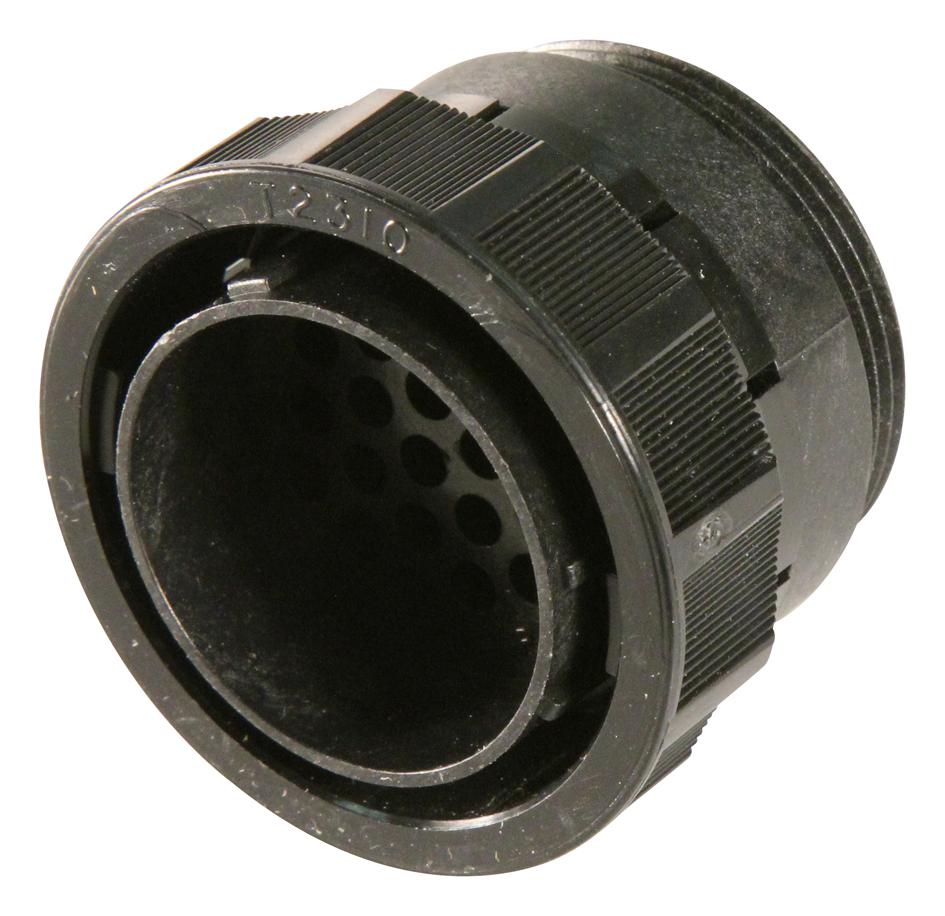

TE CONNECTIVITY - T2310-P24 - Circular Connector, T01 Series, Straight Plug, 24 Contacts, Crimp Pin - Contacts Not Supplied
- Product Range: TRIAD 01 Series
- Circular Connector Shell Style: Straight Plug
- No. of Contacts: 24Contacts
- Circular Contact Type: Crimp Pin - Contacts Not Supplied
- Coupling Style: Threaded
- Connector Body Material: Thermoplastic Body
- Connector Body Plating: -
- Contact Material: -
- Contact Plating: -
- SVHC: No SVHC (07-Jul-2017)
- Body Diameter: 44.5mm
- Colour: Black
- Connector Mounting: Panel Mount
- Connector Shell Size: 23
- Connector Type: Circular Industrial
- Contact Gender: Pin
- Current Rating: 13A
- External Length / Height: 34mm
- Flammability Rating: UL94V-1
- Gender: Plug
- IP / NEMA Rating: IP65
- Insert Arrangement: 23-24
- Insulation Resistance: 5000Mohm
- No. of Positions: 24Ways
- Operating Temperature Max: 105°C
- Operating Temperature Min: -55°C
- Voltage Rating VAC: 1500V
- Wire Area Size Max: 2.5mm²
- Wire Area Size Min: 0.5mm²
