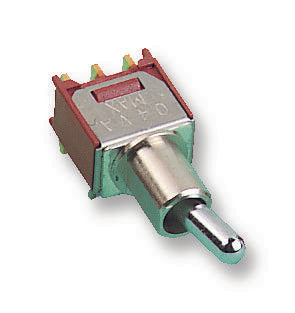

C&K COMPONENTS - T201MH9ABE - Toggle Switch, On-On, DPDT, Non Illuminated, T, Through Hole, 2 A
- Switch Operation: On-On
- Contact Configuration: DPDT
- Illumination: Non Illuminated
- Product Range: T Series
- Contact Current Max: 2A
- Switch Mounting: Through Hole
- Contact Voltage AC Nom: 20V
- Switch Terminals: Solder
- Contact Voltage DC Nom: 20V
- SVHC: Lead (15-Jan-2019)
- Actuation Type: Bat
- Bush Thread Length: 5.59mm
- Contact Current @ Contact Voltage AC Max: 20A
- Contact Current Rating: 0.4A
- Contact Resistance: 20mohm
- Contact Voltage AC Max: 20V
- Contact Voltage DC Max: 20V
- External Depth: 11.6mm
- External Length / Height: 9.1mm
- External Width: 8.1mm
- Height: 9.1mm
- No. of Electrical Operations: 60000
- Operating Temperature Max: 85°C
- Operating Temperature Min: -30°C
- Switching Power Max: 0.4VA
