SU963460 SSR, 35A Celduc

CELDUCUGS :SU963460 Code de commande:1659375

Prix:
Prix ​​promotionnel€80,71

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (14 unité)

Documents et téléchargements

description

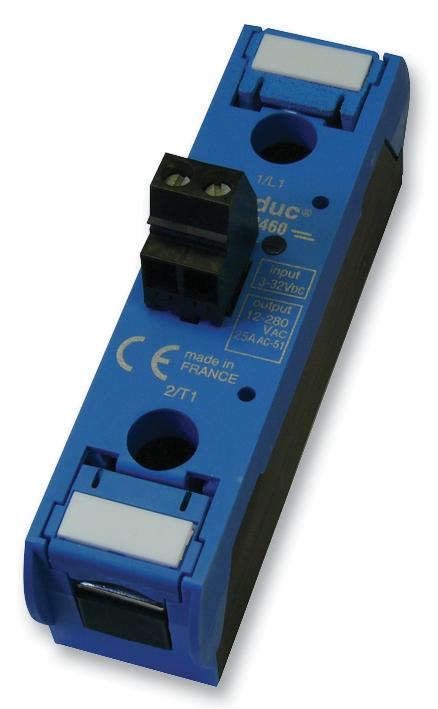

CELDUC - SU963460 - Solid State Relay, 35 A, 600 Vrms, Panel Mount, Screw, Zero Crossing

  • Contact Configuration: -
  • Load Current: 35A
  • Operating Voltage Max: 600Vrms
  • Relay Mounting: Panel
  • Relay Terminals: Screw
  • Switching Mode: Zero Crossing
  • Operating Voltage Min: 24Vrms
  • Control Voltage Min: 3.5VDC
  • Control Voltage Max: 32VDC
  • Product Range: SU Series
  • SVHC: No SVHC (07-Jul-2017)
  • Control Voltage DC Max: 32VDC
  • Control Voltage DC Min: 3.5VDC
  • Control Voltage Range: 3.5V DC to 32V DC
  • Control Voltage Type: DC
  • External Depth: 91mm
  • External Length / Height: 70mm
  • External Width: 22.5mm
  • Isolation Voltage: 4kV
  • Load Current RMS Max: 32A
  • Operating Temperature Max: 80°C
  • Operating Temperature Min: -40°C
  • Operating Voltage Range: 24Vrms to 600Vrms
  • RMS Load Current Min: 0.05A
  • RMS Load Voltage Max: 600V
  • RMS Load Voltage Min: 24V
  • Surge Current: 400A
