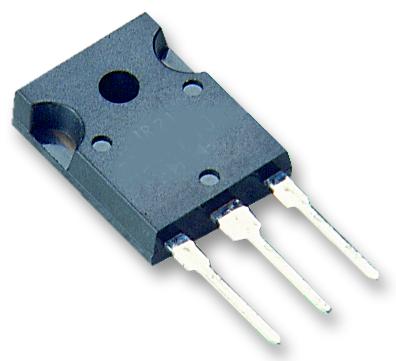

STMICROELECTRONICS - STW45NM50 - Power MOSFET, N Channel, 550 V, 45 A, 0.1 ohm, TO-247, Through Hole
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 45A
- Drain Source Voltage Vds: 550V
- On Resistance Rds(on): 0.1ohm
- Rds(on) Test Voltage Vgs: 10V
- Threshold Voltage Vgs: 4V
- Power Dissipation Pd: 417W
- Transistor Case Style: TO-247
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (17-Dec-2015)
- Alternate Case Style: SOT-249
- Current Id Max: 45A
- Junction Temperature Tj Max: 150°C
- Junction Temperature Tj Min: -65°C
- N-channel Gate Charge: 117nC
- No. of Transistors: 1
- On State resistance @ Vgs = 10V: 100mohm
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +150°C
- Pulse Current Idm: 180A
- Termination Type: Through Hole
- Voltage Vds: 550V
- Voltage Vds Typ: 500V
- Voltage Vgs Max: 4V
- Voltage Vgs Rds N Channel: 10V
- Voltage Vgs Rds on Measurement: 10V
- Voltage Vgs th Min: 3V
