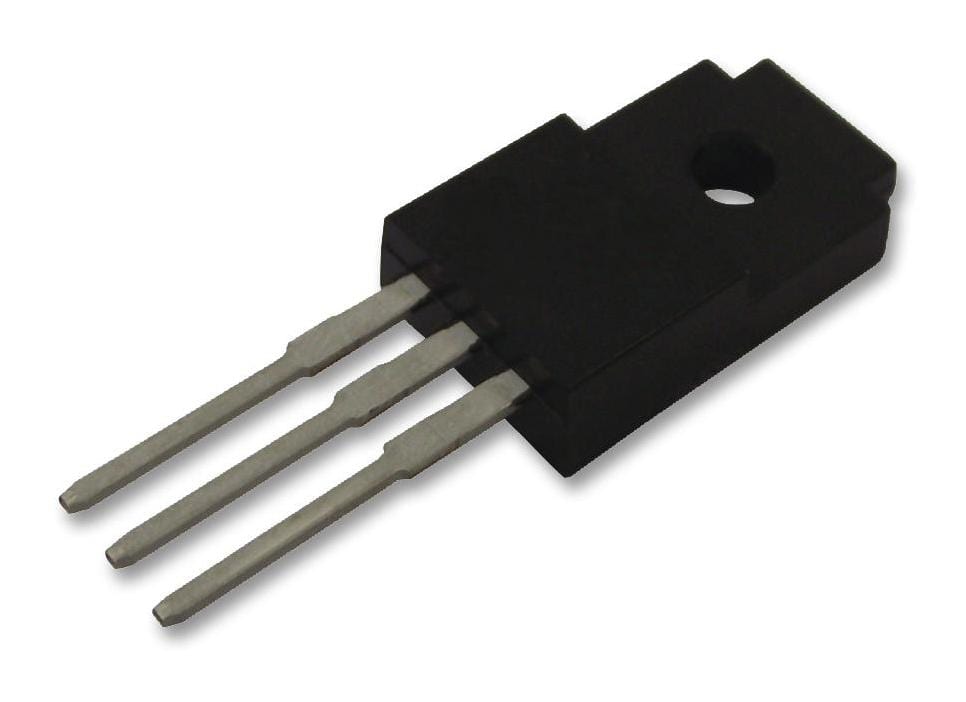

STMICROELECTRONICS - STTH812FP - Fast / Ultrafast Diode, 1.2 kV, 8 A, Single, 1.25 V, 50 ns, 80 A
- Repetitive Reverse Voltage Vrrm Max: 1.2kV
- Forward Current If(AV): 8A
- Diode Configuration: Single
- Forward Voltage VF Max: 1.25V
- Reverse Recovery Time trr Max: 50ns
- Forward Surge Current Ifsm Max: 80A
- Operating Temperature Max: 175°C
- Diode Case Style: TO-220FPAC
- No. of Pins: 2 Pin
- Product Range: STTH8 Series
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2018)
- Current If @ Vf: 8A
- Current Ifsm: 80A
- Current Ir Max: 8µA
- Diode Type: Fast Recovery
- Forward Voltage: 1.25V
- Junction Temperature Tj Max: 175°C
- No. of Pins: 2Pins
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +175°C
- Reverse Recovery Time trr Typ: 50ns
- Reverse Voltage Vr Max: 1.2kV
- Termination Type: Through Hole
