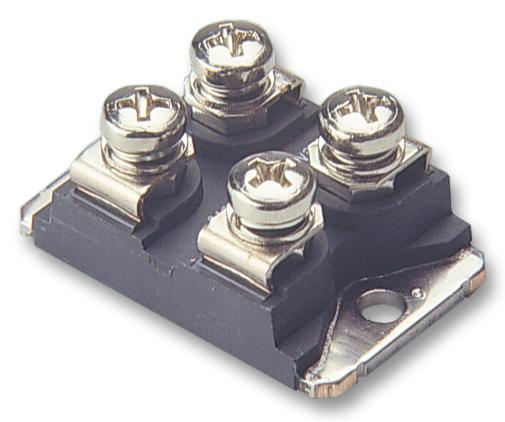

STMICROELECTRONICS - STTH6006TV1 - Diode Module, 600 V, 60 A, 1.4 V, Dual Isolated, ISOTOP, 4 Pins
- Repetitive Reverse Voltage Vrrm Max: 600V
- Forward Current If(AV): 60A
- Forward Voltage VF Max: 1.4V
- Diode Module Configuration: Dual Isolated
- Product Range: STTH6 Series
- SVHC: No SVHC (17-Dec-2015)
- Current If @ Vf: 30A
- Current Ifsm: 210A
- Current Ir Max: 25µA
- Diode Case Style: ISOTOP
- Diode Configuration: Dual Isolated
- Diode Type: Fast Recovery
- Forward Surge Current Ifsm Max: 210A
- Forward Voltage: 1.85V
- Junction Temperature Tj Max: 150°C
- Module Configuration: Dual
- No. of Phases: Single Phase
- No. of Pins: 4Pins
- Operating Temperature Max: 150°C
- Reverse Recovery Time trr Max: 50ns
- Reverse Voltage Vr Max: 600V
- Termination Type: Screw
