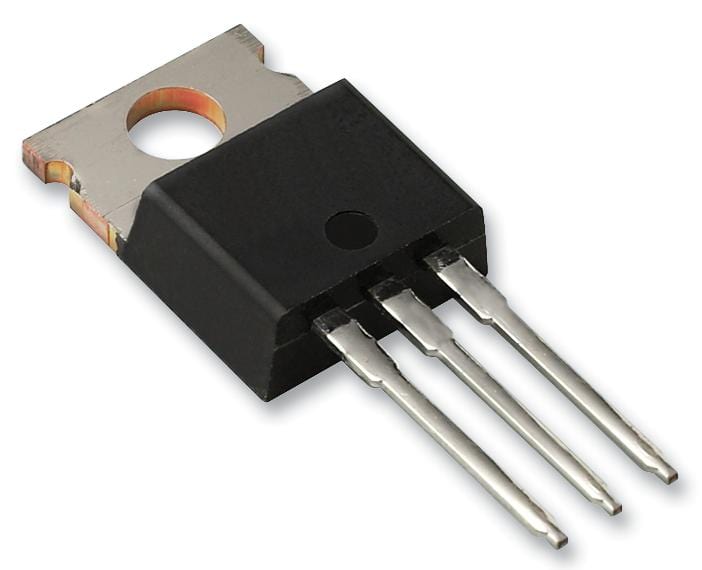

STMICROELECTRONICS - STP9NK50Z - Power MOSFET, N Channel, 500 V, 7.2 A, 0.72 ohm, TO-220, Through Hole
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 7.2A
- Drain Source Voltage Vds: 500V
- On Resistance Rds(on): 0.72ohm
- Rds(on) Test Voltage Vgs: 10V
- Threshold Voltage Vgs: 3.75V
- Power Dissipation Pd: 110W
- Transistor Case Style: TO-220
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (17-Dec-2015)
- Alternate Case Style: SOT-78B
- Current Id Max: 7.2A
- Device Marking: STP9NK50Z
- Junction Temperature Tj Max: 150°C
- Junction Temperature Tj Min: -55°C
- N-channel Gate Charge: 32nC
- On State resistance @ Vgs = 10V: 850mohm
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Pulse Current Idm: 28.8A
- Rate of Voltage Change dv / dt: 4.5V/µs
- Termination Type: Through Hole
- Voltage Vds: 500V
- Voltage Vds Typ: 500V
- Voltage Vgs Max: 30V
- Voltage Vgs Rds N Channel: 10V
- Voltage Vgs Rds on Measurement: 10V
- Voltage Vgs th Min: 3V
