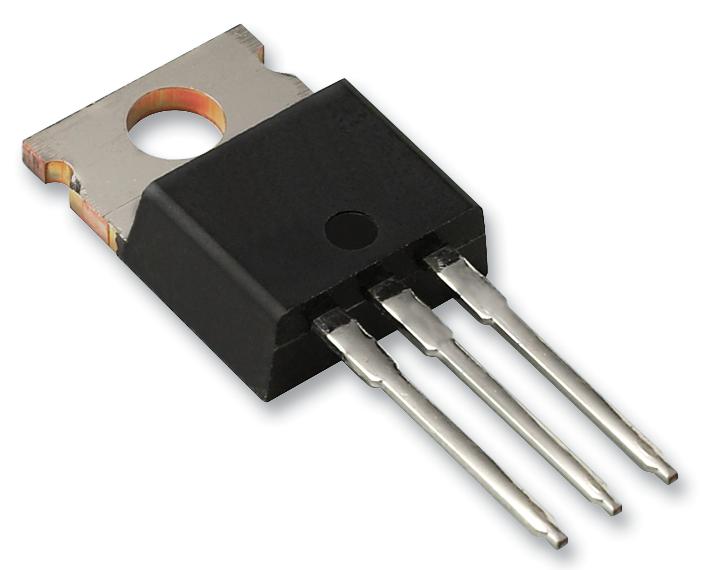

STMICROELECTRONICS - STP80NF10 - Power MOSFET, N Channel, 100 V, 80 A, 0.012 ohm, TO-220, Through Hole
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 80A
- Drain Source Voltage Vds: 100V
- On Resistance Rds(on): 0.012ohm
- Rds(on) Test Voltage Vgs: 10V
- Threshold Voltage Vgs: 3V
- Power Dissipation Pd: 300W
- Transistor Case Style: TO-220
- No. of Pins: 3Pins
- Operating Temperature Max: 175°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (17-Dec-2015)
- Alternate Case Style: SOT-78B
- Avalanche Single Pulse Energy Eas: 200mJ
- Capacitance Ciss Typ: 5500pF
- Current Id Max: 80A
- Current Temperature: 25°C
- Full Power Rating Temperature: 25°C
- Lead Spacing: 2.54mm
- No. of Transistors: 1
- On State resistance @ Vgs = 10V: 15mohm
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +175°C
- Pin Configuration: a
- Power Dissipation Ptot Max: 300W
- Pulse Current Idm: 320A
- Reverse Recovery Time trr Typ: 106ns
- Voltage Vds Typ: 100V
- Voltage Vgs Max: 3V
- Voltage Vgs Rds on Measurement: 10V
- Voltage Vgs th Max: 4V
- Voltage Vgs th Min: 2V
