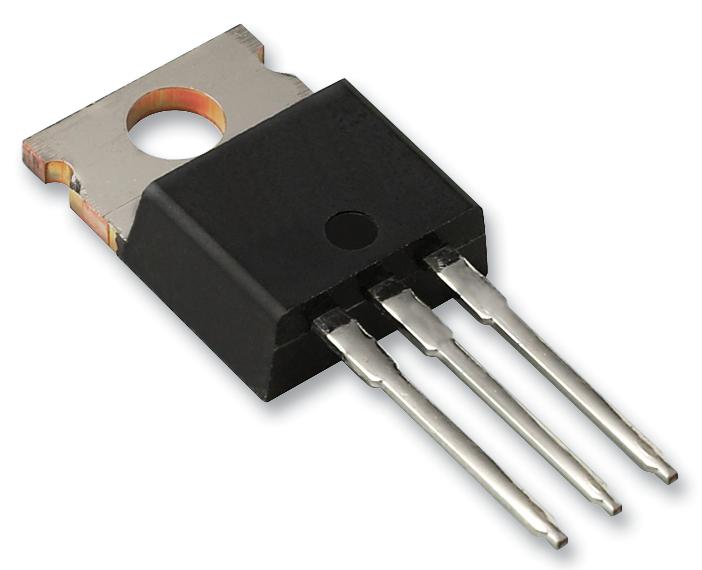

STMICROELECTRONICS - STP7NK80Z - Power MOSFET, N Channel, 800 V, 5.2 A, 1.8 ohm, TO-220, Through Hole
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 5.2A
- Drain Source Voltage Vds: 800V
- On Resistance Rds(on): 1.8ohm
- Rds(on) Test Voltage Vgs: 10V
- Threshold Voltage Vgs: 3.75V
- Power Dissipation Pd: 125W
- Transistor Case Style: TO-220
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (17-Dec-2015)
- Alternate Case Style: SOT-78B
- Avalanche Single Pulse Energy Eas: 210mJ
- Capacitance Ciss Typ: 1138pF
- Current Id Max: 5.2A
- Current Temperature: 25°C
- Full Power Rating Temperature: 25°C
- Lead Spacing: 2.54mm
- No. of Transistors: 1
- On State resistance @ Vgs = 10V: 1.8ohm
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Pin Configuration: a
- Power Dissipation Ptot Max: 125W
- Pulse Current Idm: 20.8A
- Reverse Recovery Time trr Typ: 530ns
- Voltage Vds Typ: 800V
- Voltage Vgs Max: 30V
- Voltage Vgs Rds on Measurement: 10V
- Voltage Vgs th Max: 4.5V
- Voltage Vgs th Min: 3V
