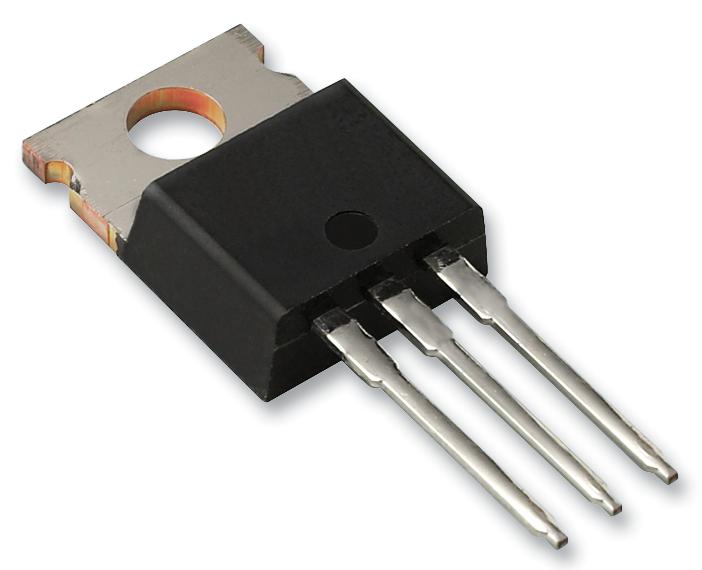

STMICROELECTRONICS - STP75NF75 - Power MOSFET, N Channel, 75 V, 80 A, 0.0095 ohm, TO-220, Through Hole
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 80A
- Drain Source Voltage Vds: 75V
- On Resistance Rds(on): 0.0095ohm
- Rds(on) Test Voltage Vgs: 10V
- Threshold Voltage Vgs: 3V
- Power Dissipation Pd: 300W
- Transistor Case Style: TO-220
- No. of Pins: 3Pins
- Operating Temperature Max: 175°C
- Product Range: STP Series
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (17-Dec-2015)
- Alternate Case Style: SOT-78B
- Current Id Max: 80A
- Junction Temperature Tj Max: 175°C
- Junction Temperature Tj Min: -55°C
- N-channel Gate Charge: 117nC
- On State resistance @ Vgs = 10V: 11mohm
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +175°C
- Pulse Current Idm: 320A
- Rate of Voltage Change dv / dt: 12V/µs
- Termination Type: Through Hole
- Voltage Vds: 75V
- Voltage Vds Typ: 75V
- Voltage Vgs Max: 3V
- Voltage Vgs Rds N Channel: 10V
- Voltage Vgs Rds on Measurement: 10V
- Voltage Vgs th Min: 2V
