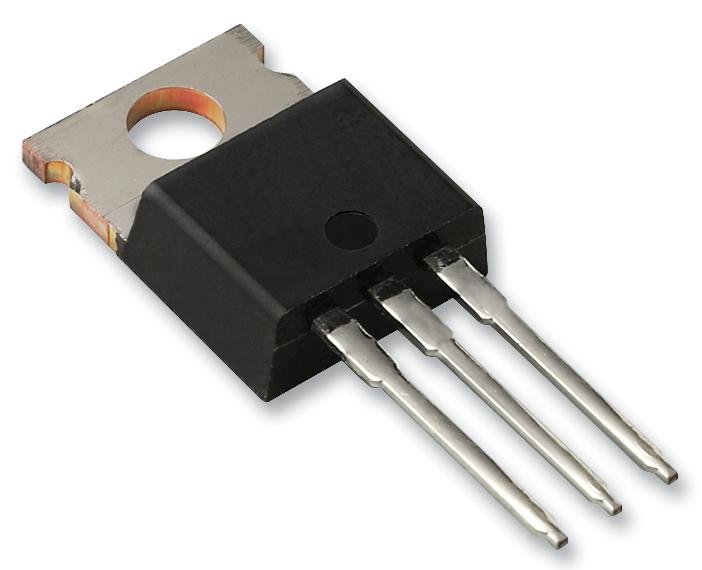

STP36NF06L MOSFET, N, Logic, TO-220 STMICROELECTRONICS

STMICROELECTRONICSUGS :STP36NF06L Code de commande:9935614

Prix:
Prix ​​promotionnel€2,65

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (11747 unité)

Documents et téléchargements

description

STMICROELECTRONICS - STP36NF06L - Power MOSFET, N Channel, 60 V, 30 A, 0.032 ohm, TO-220, Through Hole

  • Transistor Polarity: N Channel
  • Continuous Drain Current Id: 30A
  • Drain Source Voltage Vds: 60V
  • On Resistance Rds(on): 0.032ohm
  • Rds(on) Test Voltage Vgs: 10V
  • Threshold Voltage Vgs: 2.5V
  • Power Dissipation Pd: 70W
  • Transistor Case Style: TO-220
  • No. of Pins: 3Pins
  • Operating Temperature Max: 175°C
  • Product Range: -
  • Automotive Qualification Standard: AEC-Q101
  • MSL: -
  • SVHC: No SVHC (17-Dec-2015)
  • Alternate Case Style: SOT-78B
  • Current Id Max: 30A
  • On State Resistance @ Vgs = 4.5V: 50mohm
  • On State resistance @ Vgs = 10V: 40mohm
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +175°C
  • Pulse Current Idm: 120A
  • SMD Marking: STP36NF06L
  • Voltage Vds Typ: 60V
  • Voltage Vgs Max: 2.5V
  • Voltage Vgs Rds on Measurement: 10V
