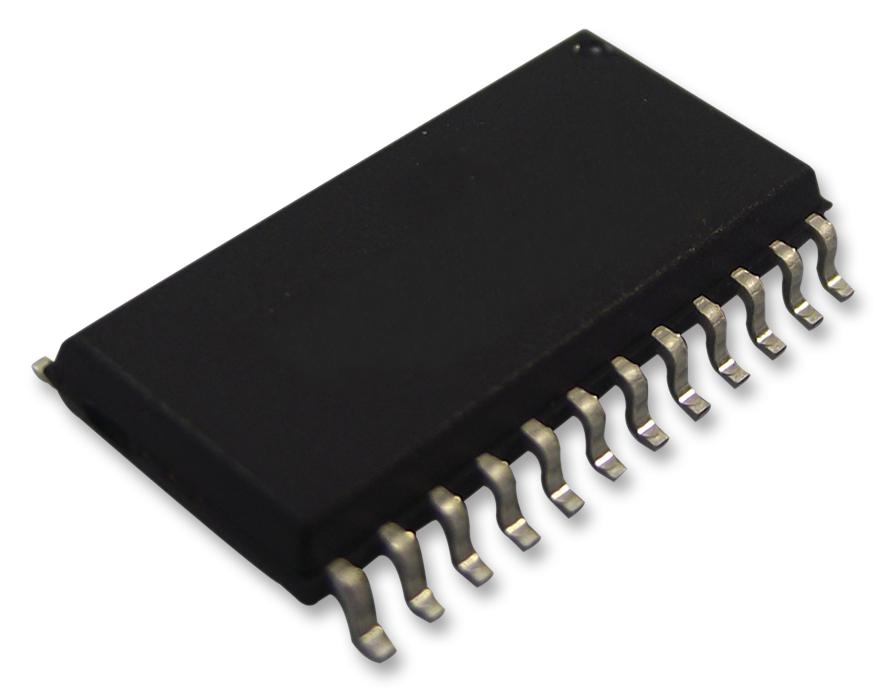

STMICROELECTRONICS - STP16CPS05MTR - Led Driver, 16 Outputs, Constant Current, 3V-5.5V in, 30MHz switch, 20V/100mA out, SOIC-24
- Device Topology: Constant Current
- No. of Outputs: 16Outputs
- Output Current: 100mA
- Output Voltage: 20V
- Driver Case Style: SOIC
- No. of Pins: 24Pins
- Input Voltage Min: 3V
- Input Voltage Max: 5.5V
- Switching Frequency: 30MHz
- Operating Temperature Min: -40°C
- Operating Temperature Max: 125°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (17-Dec-2015)
- Base Number: 16
- Character Type: LED Panel Display
- Data / Control Interface: Serial
- Device Type: LED
- Dimming Control Type: Analogue
- Input Voltage: 3V to 5.5V
- LED Display Type: Discrete LED
- LED Driver Application: LED Displays
- Operating Temperature Range: -40°C to +125°C
- Output Current Max: 100mA
- Output Voltage Max: 20V
- Supply Voltage Max: 5V
- Termination Type: Surface Mount Device
