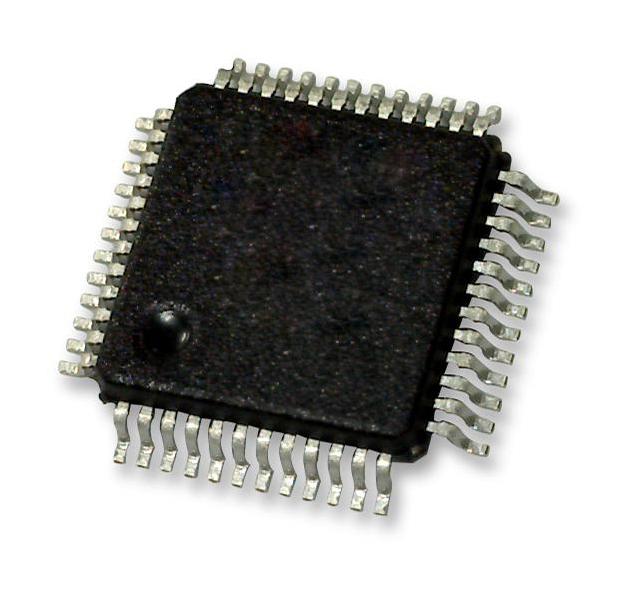

STMICROELECTRONICS - STM8S207C8T6 - 8 Bit MCU, Performance Line, STM8 Family STM8S Series Microcontrollers, 24 MHz, 64 KB, 48 Pins
- Product Range: STM8 Family STM8S Series Microcontrollers
- CPU Speed: 24MHz
- Program Memory Size: 64KB
- RAM Memory Size: 4KB
- No. of Pins: 48Pins
- MCU Case Style: LQFP
- No. of I/O's: 38I/O's
- Embedded Interface Type: CAN, I2C, SPI, UART
- Supply Voltage Min: 2.95V
- Supply Voltage Max: 5.5V
- MCU Family: STM8
- MCU Series: STM8S
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (17-Dec-2015)
- Clock Frequency: 24MHz
- Controller Family/Series: STM8S20xxx
- EEPROM Memory Size: 1.5KB
- Flash Memory Size: 64KB
- MPU Core Size: 8bit
- No. of ADC Inputs: 10
- No. of PWM Channels: 12
- No. of Timers: 4
- Number of bits in ADC: 10
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +85°C
- Oscillator Type: External, Internal
- Peripherals: ADC
- Program Memory Size: 64KB
- Supply Voltage Range: 2.95V to 5.5V
- Termination Type: Surface Mount Device
