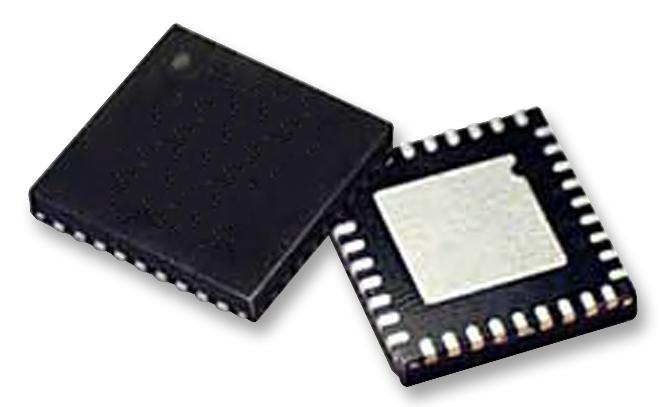

STMICROELECTRONICS - STM32F103T8U6 - ARM MCU, Motor Control, STM32 Family STM32F1 Series Microcontrollers, ARM Cortex-M3, 32bit, 72 MHz
- Product Range: STM32 Family STM32F1 Series Microcontrollers
- Architecture: ARM Cortex-M3
- No. of Bits: 32bit
- CPU Speed: 72MHz
- Program Memory Size: 64KB
- RAM Memory Size: 20KB
- No. of Pins: 36Pins
- MCU Case Style: VFQFPN
- No. of I/O's: 26I/O's
- Embedded Interface Type: CAN, I2C, SPI, USART, USB
- Supply Voltage Min: 2V
- Supply Voltage Max: 3.6V
- MCU Family: STM32
- MCU Series: STM32F1
- RoHS Phthalates Compliant: Yes
- MSL: MSL 3 - 168 hours
- SVHC: No SVHC (17-Dec-2015)
- Clock Frequency: 72MHz
- Controller Family/Series: STM32
- Flash Memory Size: 64KB
- IC Generic Number: 32F103T8
- MPU Core Size: 32bit
- Memory Type: Flash
- No. of ADC Inputs: 10
- No. of PWM Channels: 12
- No. of Timers: 4
- Number of bits In Timer: 16
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +85°C
- Oscillator Type: External, Internal
- Peripherals: ADC, DMA
- Program Memory Size: 64KB
- Serial Comms: 1xSPI, 1xI2C, 2xUSART - (IrDa - ISO7816), USB, CAN
