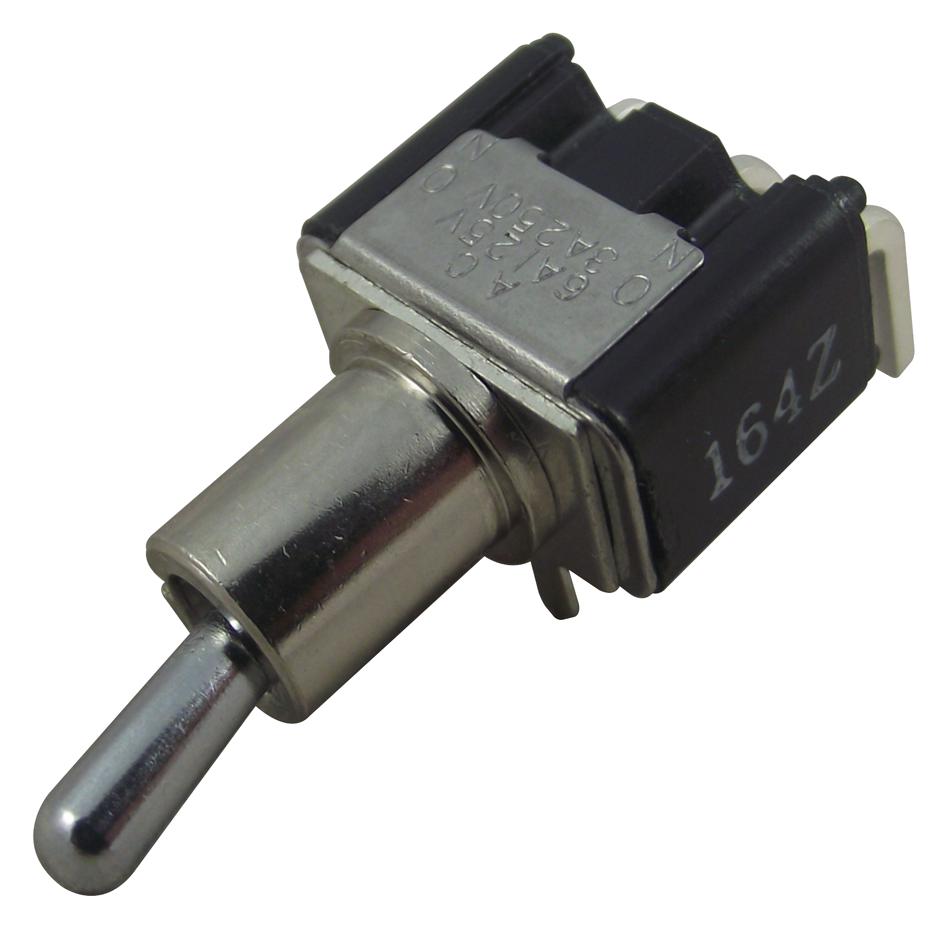

KNITTER-SWITCH - STM 106 D-RA - Toggle Switch, On-On, SPDT, Non Illuminated, STM, Through Hole, 6 A
- Switch Operation: On-On
- Contact Configuration: SPDT
- Illumination: Non Illuminated
- Product Range: STM Series
- Contact Current Max: 6A
- Switch Mounting: Through Hole
- Contact Voltage AC Nom: 250V
- Switch Terminals: Solder
- Contact Voltage DC Nom: 30V
- SVHC: No SVHC (15-Jan-2018)
- Actuation Type: Lever
- Contact Current @ Contact Voltage AC Max: 3A
- Contact Current @ Contact Voltage DC Max: 4A
- Contact Current AC: 3A
- Contact Current AC Max: 6A
- Contact Current DC Max: 6A
- Contact Resistance: 10mohm
- Contact Voltage AC Max: 250V
- Contact Voltage DC Max: 30V
- External Depth: 8mm
- External Length / Height: 18mm
- External Width: 13mm
- Height: 18mm
- Insulation Resistance: 1000Mohm
- Operating Temperature Max: 80°C
- Operating Temperature Min: -20°C
- Proof Voltage: 1000V
- Repeatability: 100000
- Tab Blade Thickness: 1.1mm
