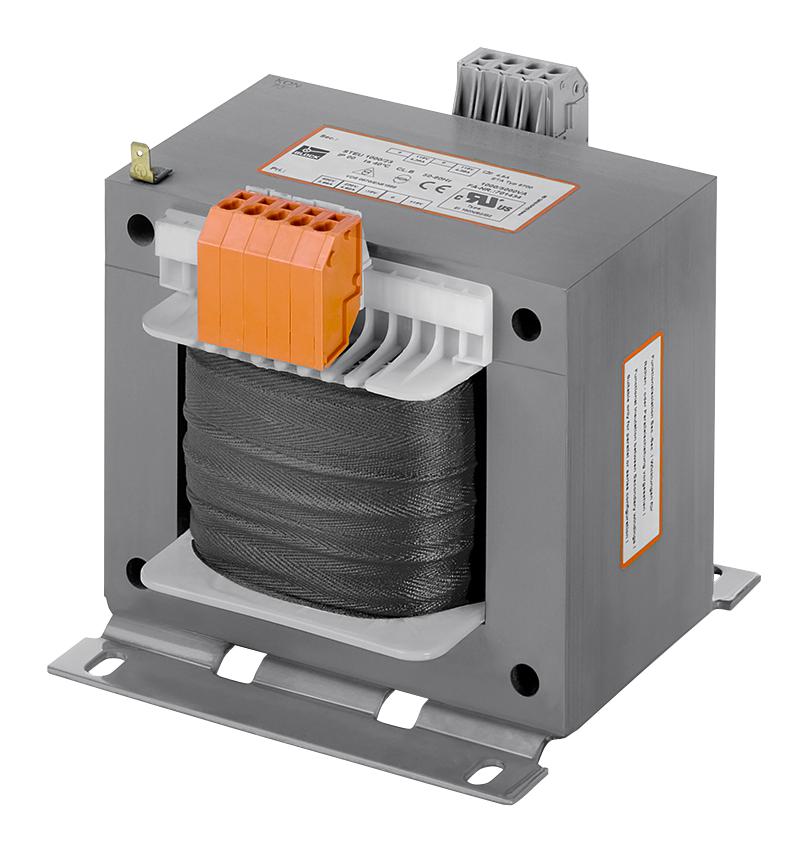

BLOCK - STEU500/24 - Chassis Mount Transformer, Open Style Control and Safety Isolating, 230V, 400V, 2 x 12V, 500 VA
- Power Rating: 500VA
- Secondary Voltages: 2 x 12V
- Current Rating: 41.6A
- Isolation Transformer Primary Voltages: 1 x 230V, 1 x 400V
- Plug Type: -
- Product Range: -
- SVHC: No SVHC (12-Jan-2017)
- AC Power: 500VA
- Approval Bodies: EN, IEC, UL, VDE
- External Depth: 124mm
- External Length / Height: 121mm
- External Width: 120mm
- Fixing Centres LxW: 90 x 106
- Input Voltage: 400V
- Multiple Output Voltages: 2 X 12V
- Operating Temperature Max: 40°C
- Output 2 Voltage Max: 12V
- Output Voltage: 12V
- Primary Voltages: 230V, 400V
- Regulation: 92%
- Secondary Power: 250VA
- Supply Frequency Max: 60Hz
- Supply Frequency Min: 50Hz
- Transformer Type: Isolation
- Weight: 7.7kg
