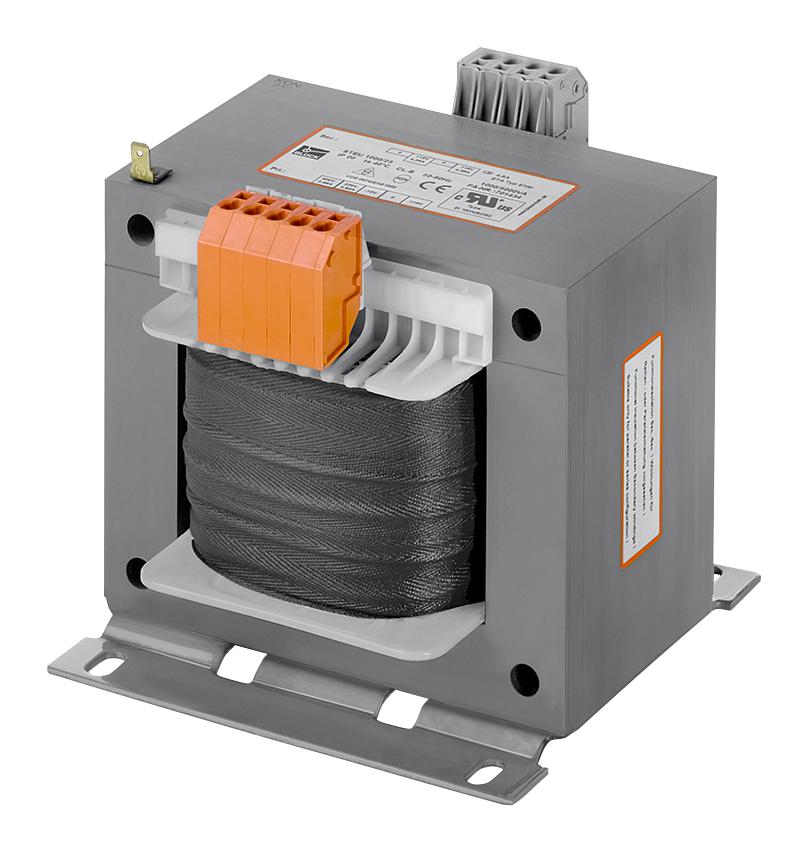

STEU2500/23 TRANSFORMER, 2.5KVA, 230/400V, 2 X 115V BLOCK

BLOCKUGS :STEU2500/23 Code de commande:1177112

Prix:
Prix ​​promotionnel€693,62

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
Rupture de stock

Documents et téléchargements

description

BLOCK - STEU2500/23 - Chassis Mount Transformer, Control, Open Style Control and Safety Isolating, 230V, 400V, 2 x 115V

  • Power Rating: 2.5kVA
  • Secondary Voltages: 2 x 115V
  • Current Rating: 10.8A
  • Isolation Transformer Primary Voltages: 1 x 230V, 1 x 400V
  • Plug Type: -
  • Product Range: STEU Series
  • SVHC: No SVHC (12-Jan-2017)
  • AC Power: 2500VA
  • Approval Bodies: EN, IEC, UL, VDE
  • External Depth: 190mm
  • External Length / Height: 180.5mm
  • External Width: 192mm
  • Fixing Centres LxW: 156 x 161
  • Input Voltage: 400V
  • Insulation Class: VDE - B, UL - 130
  • Multiple Output Voltages: 2 x 115V
  • Operating Temperature Max: 40°C
  • Output Voltage: 115V
  • Primary Voltages: 1 x 400V
  • Protection Type: IP 000
  • Regulation: 94%
  • Secondary No Load Voltage: 1.02V
  • Secondary Power: 2.5kVA
  • Supply Frequency Max: 60Hz
  • Supply Frequency Min: 50Hz
  • Test Voltage: 4500VAC
  • Transformer Type: Isolation
  • Type: Open
  • Weight: 26.3kg
