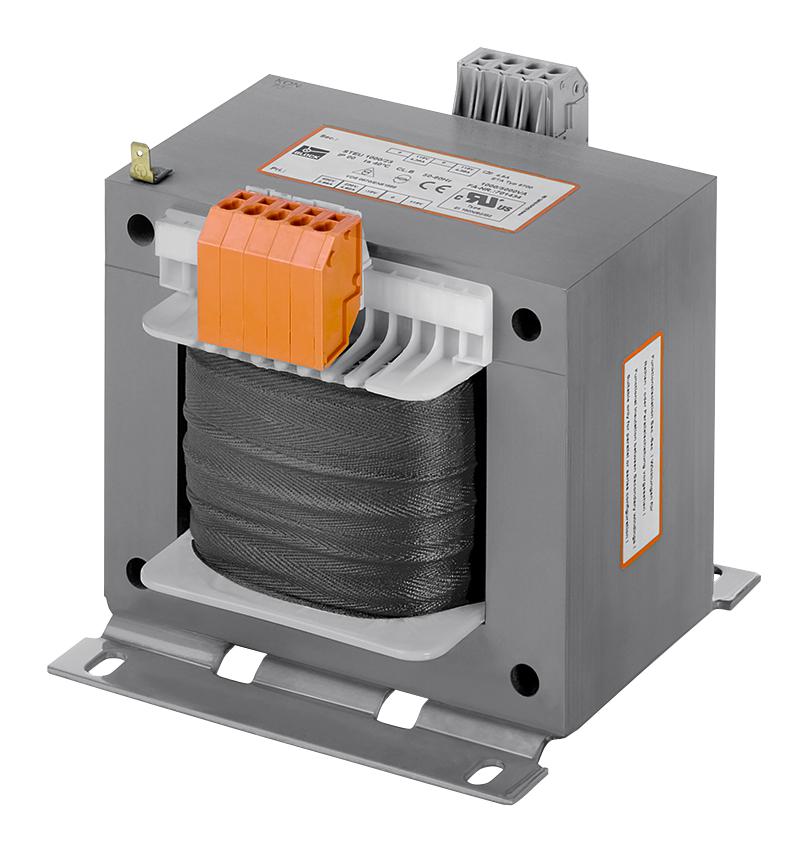

BLOCK - STEU1000/48 - Chassis Mount Transformer, Control, Open Style Control and Safety Isolating, 230V, 400V, 2 x 24V
- Power Rating: 1kVA
- Secondary Voltages: 2 x 24V
- Current Rating: 41.7A
- Isolation Transformer Primary Voltages: 1 x 230V, 1 x 400V
- Plug Type: -
- Product Range: -
- SVHC: No SVHC (12-Jan-2017)
- AC Power: 1000VA
- Approval Bodies: EN, IEC, UL, VDE
- External Depth: 156mm
- External Length / Height: 143mm
- External Width: 150mm
- Fixing Centres LxW: 122 x 134
- Input Voltage: 400V
- Multiple Output Voltages: 2 x 24V
- Operating Temperature Max: 40°C
- Output 2 Voltage Max: 24V
- Output Voltage: 24V
- Primary Voltages: 230V, 400V
- Regulation: 94%
- Secondary Power: 500VA
- Supply Frequency Max: 60Hz
- Supply Frequency Min: 50Hz
- Transformer Type: Isolation
- Weight: 13.3kg
