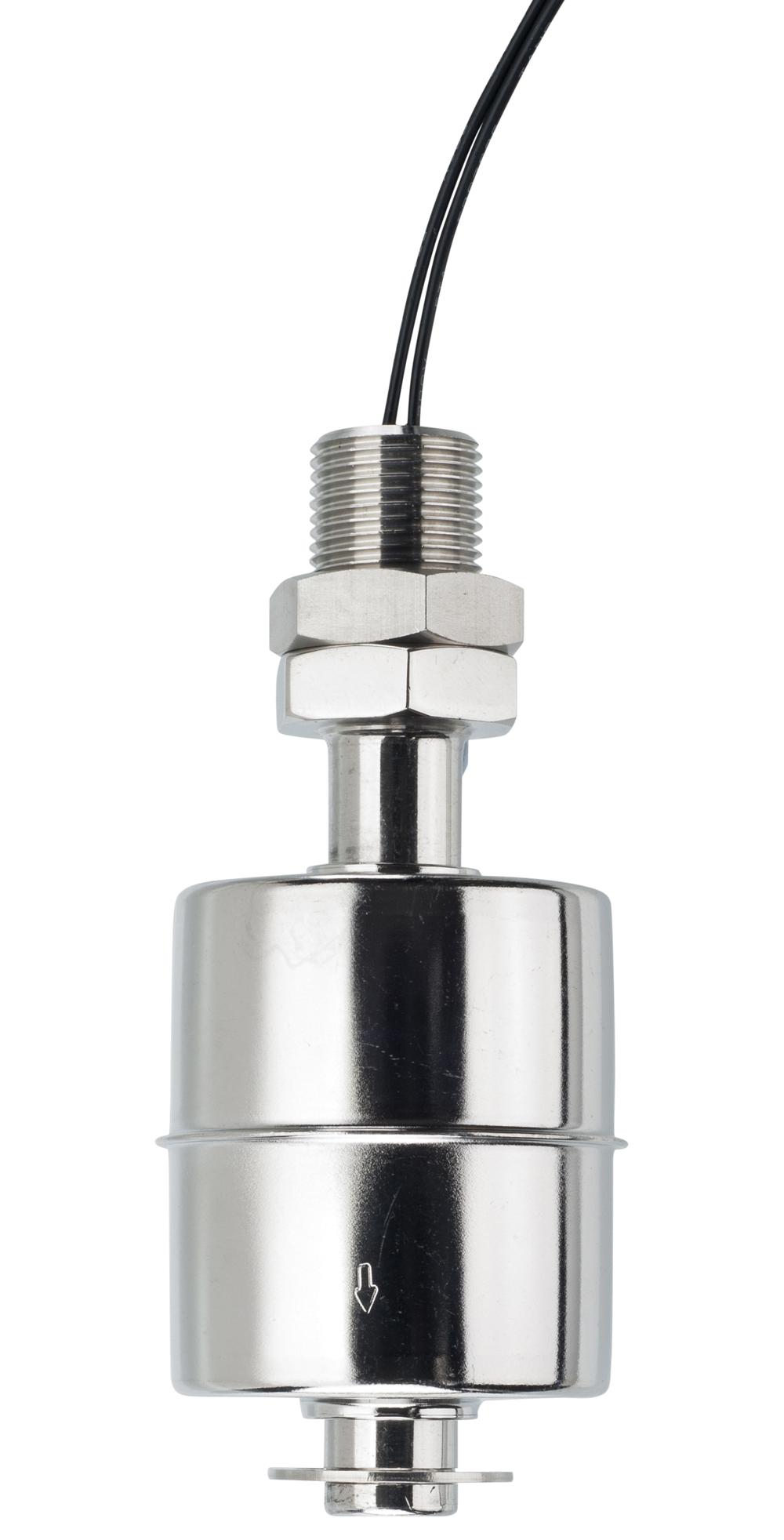

SSF26X100 Float Switch, Vert SENSATA / CYNERGY3

SENSATA / CYNERGY3UGS :SSF26X100 Code de commande:4249161

Prix:
Prix ​​promotionnel€389,16

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
Seulement 2 produits disponibles

Documents et téléchargements

description

SENSATA / CYNERGY3 - SSF26X100 - Float Switch, SSF26 Series, Horizontal, Internal, SPST, Stainless Steel, 50 VA, 0.5 m Cable

  • Operating Pressure Max: 10bar
  • Sensor Body Material: Stainless Steel
  • Output Current: 500mA
  • Product Range: SSF26 Series
  • SVHC: No SVHC (17-Dec-2015)
  • Body Material: Stainless Steel
  • Contact Configuration: 1NO / 1NC
  • Contact Current AC Max: 0.5A
  • Contact Voltage AC Max: 300V
  • External Length / Height: 95mm
  • Float Diameter: 50mm
  • Lead Length: 350mm
  • Material: 316 Grade
  • Operating Pressure Range: 0bar to 10bar
  • Operating Temperature Max: 200°C
  • Pressure Max: 10bar
  • Sensor Output: SPST-NO / SPST-NC
  • Specific Gravity of Liquid Min: 0.65
  • Supply Voltage DC Max: 300V
  • Supply Voltage DC Min: 0V
  • Supply Voltage Range AC: 0V to 300V
  • Supply Voltage Range DC: 0V to 300V
  • Switching Current AC Max: 0.5A
  • Switching Voltage AC / DC Max: 300VAC
  • Thread Size: 3/8"BSP
