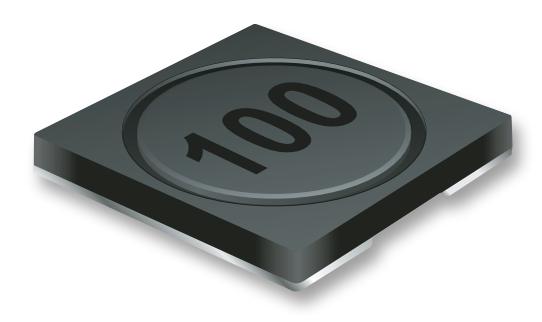

BOURNS - SRR4011-3R3YL - Power Inductor (SMD), 3.3 µH, 1.6 A, Shielded, 1.4 A, SRR4011
- Inductance: 3.3µH
- RMS Current (Irms): 1.6A
- Inductor Construction: Shielded
- Saturation Current (Isat): 1.4A
- Product Range: SRR4011 Series
- Power Inductor Case: 4.8mm x 4.8mm x 1.15mm
- DC Resistance Max: 0.11ohm
- Inductance Tolerance: ± 30%
- SVHC: No SVHC (15-Jan-2018)
- External Depth: 4.8mm
- External Length / Height: 1.15mm
- External Width: 4.8mm
- No. of Pins: 2Pins
- Operating Temperature Max: 125°C
- Operating Temperature Min: -40°C
- Q Factor: 10
- Q Test Frequency: 7.96MHz
- Resonant Frequency: 67MHz
- Self Resonant Frequency Min: 67MHz
- Test Frequency: 7.96MHz
