description

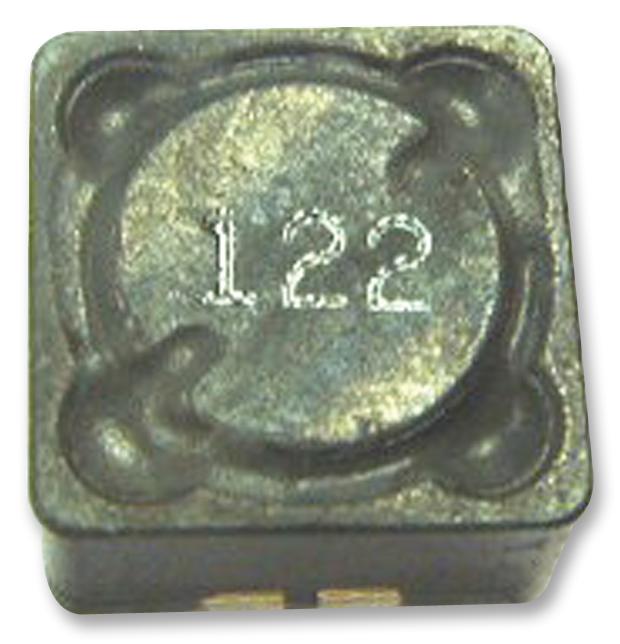

BOURNS - SRR1208-6R5ML - Power Inductor (SMD), 6.5 µH, 6 A, Shielded, 8.4 A, 12.7mm x 12.7mm x 8.5mm
- Inductance: 6.5µH
- RMS Current (Irms): 6A
- Inductor Construction: Shielded
- Saturation Current (Isat): 8.4A
- Product Range: -
- Power Inductor Case: 12.7mm x 12.7mm x 8.5mm
- DC Resistance Max: 0.018ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (07-Jul-2017)
- External Depth: 8.5mm
- External Length / Height: 12.7mm
- External Width: 12.7mm
- Inductor Type: Shielded Power Choke
- Operating Temperature Max: 125°C
- Operating Temperature Min: 40°C
- Q Factor: 25
- Q Test Frequency: 7.96MHz
- Resonant Frequency: 32MHz
- Self Resonant Frequency Min: 20MHz
- Test Frequency: 7.96MHz
