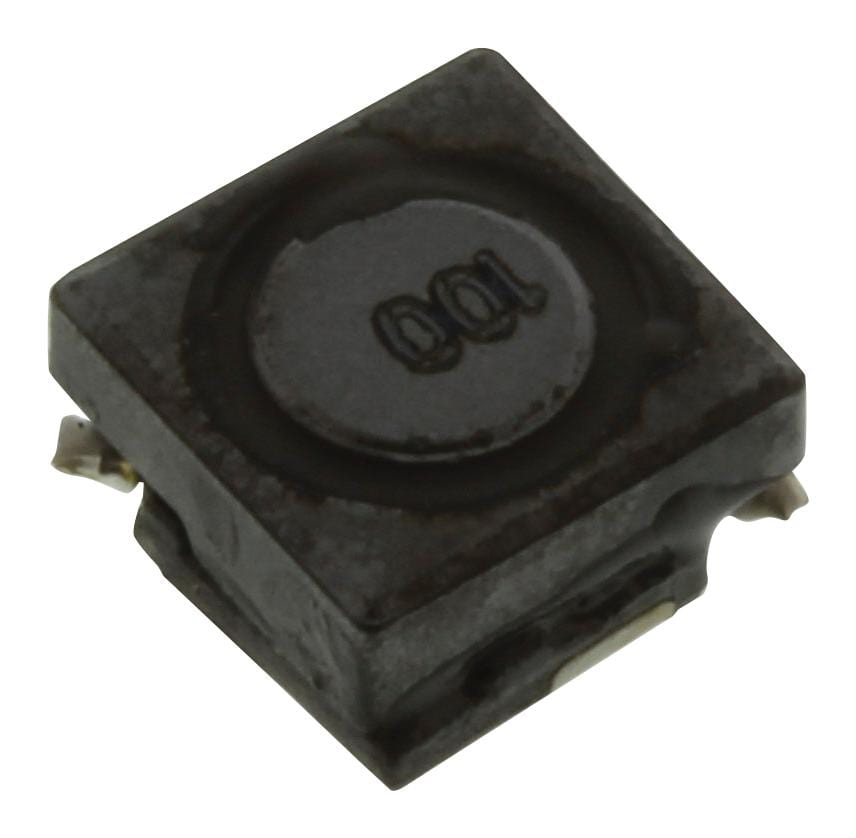

BOURNS - SRR0604-151KL - Power Inductor (SMD), 150 µH, 300 mA, Shielded, 470 mA, SRR0604, 6.5mm x 6.5mm x 4.8mm
- Inductance: 150µH
- RMS Current (Irms): 300mA
- Inductor Construction: Shielded
- Saturation Current (Isat): 470mA
- Product Range: SRR0604 Series
- Power Inductor Case: 6.5mm x 6.5mm x 4.8mm
- DC Resistance Max: 1ohm
- Inductance Tolerance: ± 10%
- SVHC: No SVHC (15-Jan-2018)
- Q Factor: 21
- Q Test Frequency: 796kHz
- Self Resonant Frequency Min: 12MHz
