SRKE-1AT-SL-12VDC Relay, Automotive, SPST-NO, 14VDC, 45A IMO Precision Controls

IMO PRECISION CONTROLSUGS :SRKE-1AT-SL-12VDC Code de commande:1094082

Prix:
Prix ​​promotionnel€11,02

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (104 unité)

Documents et téléchargements

description

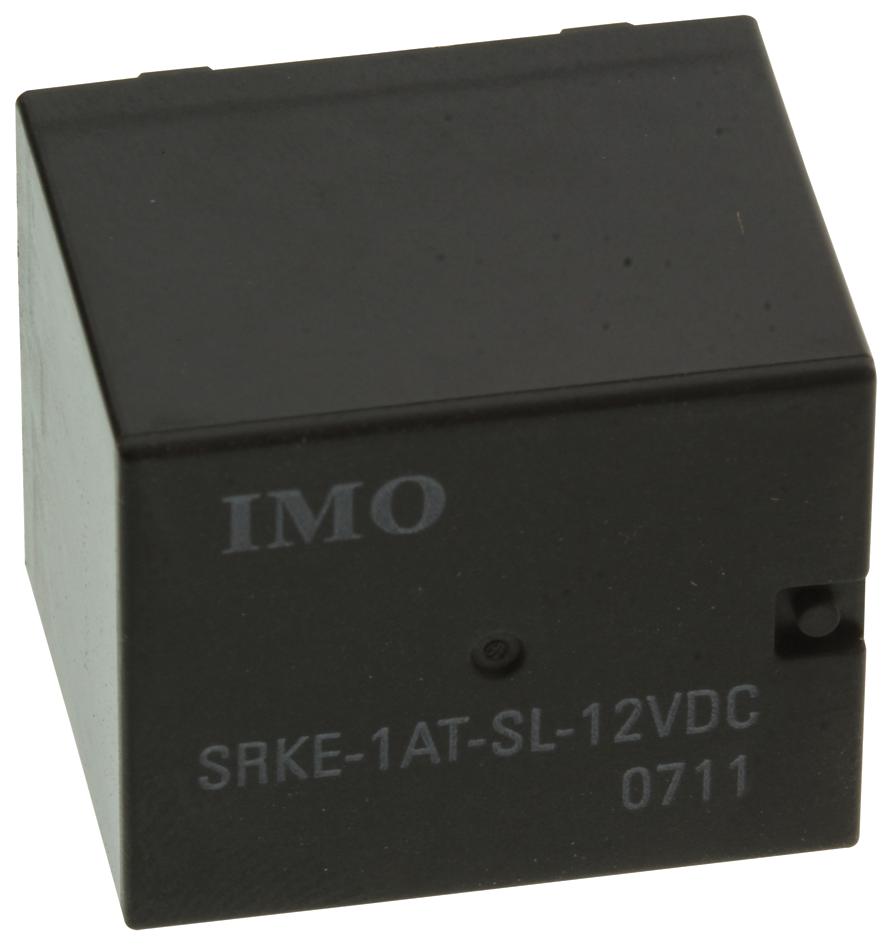

IMO PRECISION CONTROLS - SRKE-1AT-SL-12VDC - Automotive Relay, 12 VDC, 45 A, SPST-NO, Through Hole, Solder, SRK

  • Coil Voltage: 12VDC
  • Contact Current: 45A
  • Contact Configuration: SPST-NO
  • Relay Mounting: Through Hole
  • Relay Terminals: Solder
  • Product Range: SRK Series
  • Contact Voltage DC Nom: 14V
  • Coil Resistance: 90ohm
  • Contact Material: Silver Tin Oxide
  • SVHC: No SVHC (07-Jul-2017)
  • Coil Voltage VDC Nom: 12V
  • Contact Current DC Max: 45A
  • Contact Current Max: 45A
  • Contact Resistance: 100mohm
  • Contact Voltage DC Max: 30V
  • DC Coil Power: 1.6W
  • External Depth: 22mm
  • External Height: 22.3mm
  • External Length / Height: 22.3mm
  • External Width: 26.5mm
  • Insulation Resistance: 50Mohm
  • Mechanical Life: 10,000,000 Operations
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -40°C
