SR6ZB024 Relay, Safety, 4NO, DPST-NC, 250VAC, 8A SCHRACK - Te Connectivity

SCHRACK - TE CONNECTIVITYUGS :5-1415033-1 Code de commande:9913505

Prix:
Prix ​​promotionnel€181,59

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (47 unité)

Documents et téléchargements

description

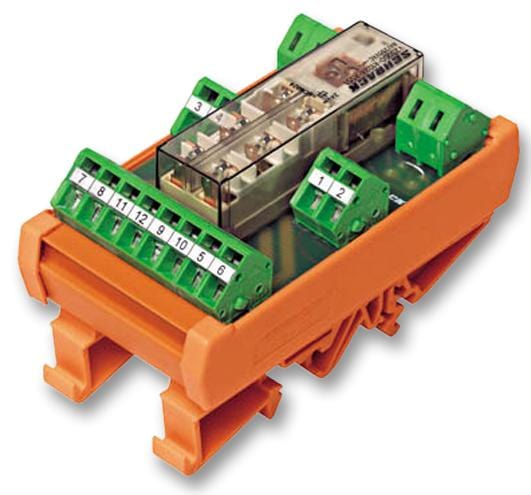

SCHRACK - TE CONNECTIVITY - 5-1415033-1 - Safety Relay, 24 VDC, 4PST-NO, DPST-NC, SR6Z, DIN Rail, 8 A, Cage Clamp

  • Coil Voltage: 24VDC
  • Contact Configuration: 4PST-NO, DPST-NC
  • Product Range: SR6Z Series
  • Relay Mounting: DIN Rail
  • Contact Current: 8A
  • Relay Terminals: Cage Clamp
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Nom: -
  • Contact Material: Silver Tin Oxide
  • IP Rating: -
  • SVHC: No SVHC (12-Jan-2017)
  • Approval Bodies: CE
  • Approvals & Standards: VDE
  • Coil Resistance: 480ohm
  • Coil Voltage VDC Nom: 24V
  • Contact Current AC Max: 8A
  • Contact Current Max: 8A
  • Contact Voltage AC Max: 240V
  • Current Min: 10mA
  • Current Rating: 8A
  • External Depth: 87mm
  • External Height: 58mm
  • External Length / Height: 58mm
  • External Width: 46mm
  • Operating Temperature Max: 50°C
  • Operating Temperature Min: -25°C
  • Supply Voltage: 240VAC
  • Switching Capacity: 2000 VA
