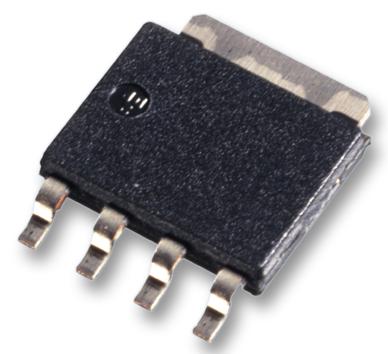

VISHAY - SQJ850EP-T1_GE3 - Power MOSFET, N Channel, 60 V, 24 A, 0.019 ohm, PowerPAK SO, Surface Mount
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 24A
- Drain Source Voltage Vds: 60V
- On Resistance Rds(on): 0.019ohm
- Rds(on) Test Voltage Vgs: 10V
- Threshold Voltage Vgs: 2V
- Power Dissipation Pd: 45W
- Transistor Case Style: PowerPAK SO
- No. of Pins: 8Pins
- Operating Temperature Max: 175°C
- Product Range: -
- Automotive Qualification Standard: AEC-Q101
- MSL: MSL 1 - Unlimited
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +175°C
- Voltage Vgs Max: 20V
