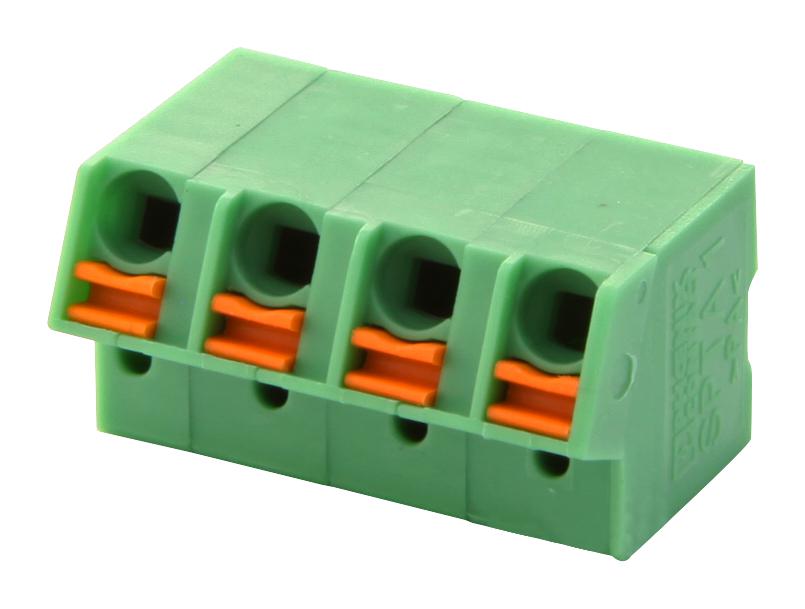

PHOENIX CONTACT - SPTA 1/4-5.0 - Wire-To-Board Terminal Block, 5 mm, 4 Ways, 24 AWG, 16 AWG, 1.5 mm², Push In
- Pitch Spacing: 5mm
- No. of Positions: 4Ways
- Wire Size AWG Min: 24AWG
- Wire Size AWG Max: 16AWG
- Conductor Area CSA: 1.5mm²
- Wire Connection Method: Push In
- Rated Current: 9A
- Rated Voltage: 320V
- Block Orientation: Through Hole 25°
- Product Range: SPTA
- Connector Mounting: PCB Mount
- Connector Type: Terminal Block, PCB
- Contact Material: Copper
- Contact Plating: Tin Plated Contacts
